Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove engine-compartment lid. → 557819 REMOVING AND INSTALLING ENGINE COMPARTMENT LID
  2. Fix the engine in the installation position using safety device 10-222 A  at the engine lifting bracket.

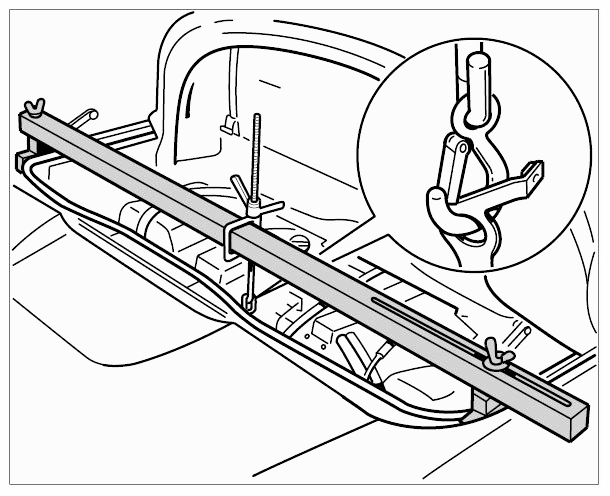

    Fig 1: Fixing Engine Installation Position Using Safety Device (10-222 A)
    G09586881Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Raise the vehicle at the prescribed jacking points. → Lifting The Vehicle
  4. Remove support plate. → Removing Support Plate
