Installing Transmission Control Unit (PDK)

WARNING: This page is about a different variant/trim than selected.
  1. Install transmission control unit (PDK)
    1. 1.1. Press transmission control unit (PDK) -1-  into the holder -arrow A-  until the four clips -arrows-  engage securely.
    2. 1.2. Close the locking bar -2-  (-arrow B-  ) until it engages securely.

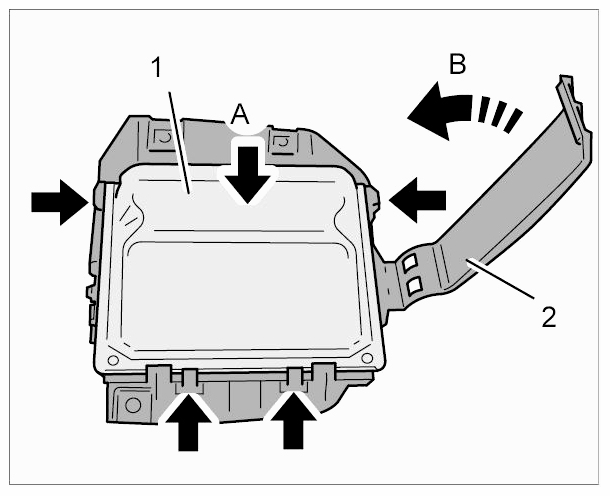

    Fig 1: Installing Transmission Control Unit (PDK)
    G09586928Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install transmission control unit (PDK) and holder.
    1. 2.1. Place transmission control unit (PDK) and holder in installation position. Make sure that the clips -1-  engage correctly in the guides -2-  .

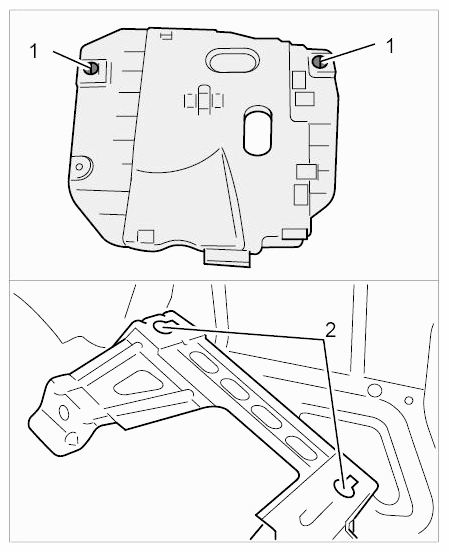

      Fig 2: Identifying Transmission Control Unit Clips And Guides (PDK)
      G09586929Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Insert transmission control unit (PDK) -arrow A-  .
    3. 2.3. Tighten fastening screw -1-  .
    4. 2.4. Plug in connectors -arrows B-  until they engage securely.

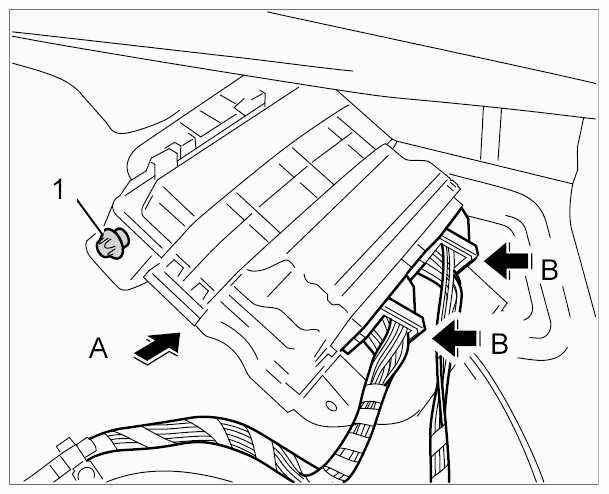

    Fig 3: Installing Transmission Control Unit (PDK) And Holder
    G09586930Courtesy of PORSCHE CARS NORTH AMERICA, INC.
