Installing Tiptronic Control Unit (Also Referred To Generally As Control Unit Below)

WARNING: This page is about a different variant/trim than selected.
  1. Connect the connector to the control unit and insert the closing clip until it engages.

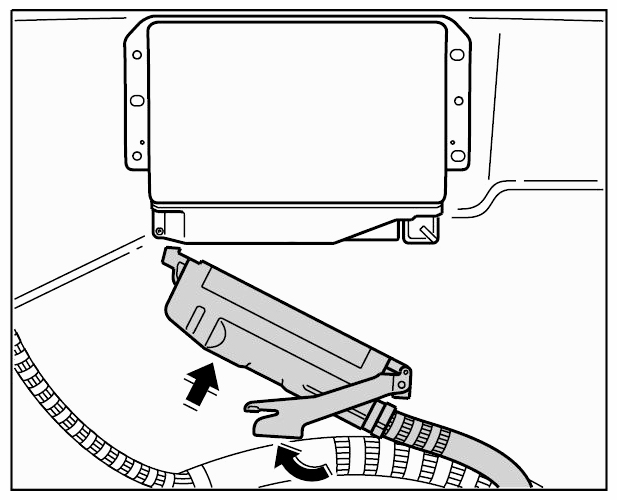

    Fig 1: Connecting Electric Plug
    G09586878Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position control unit and secure with the fastening nuts. → Tightening torque: 7.5 ftlb.

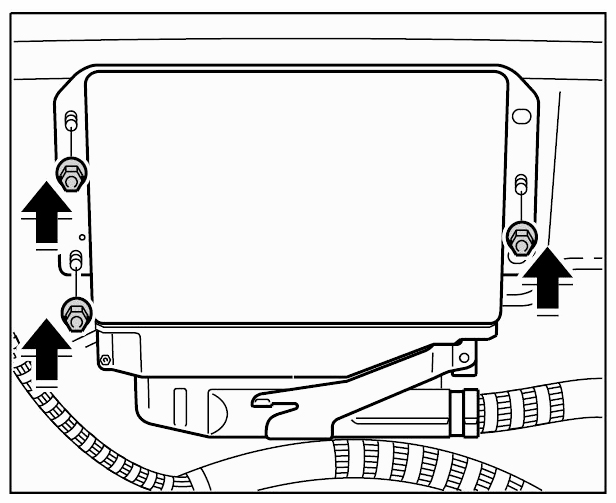

    Fig 2: Locating Control Unit Fastening Nuts
    G09586879Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fold back the carpet lining into position and fasten with the clips.
