Installing Tiptronic Control Unit

WARNING: This page is about a different variant/trim than selected.
  1. Connect the connector to the control unit and insert the closing clip until it engages.

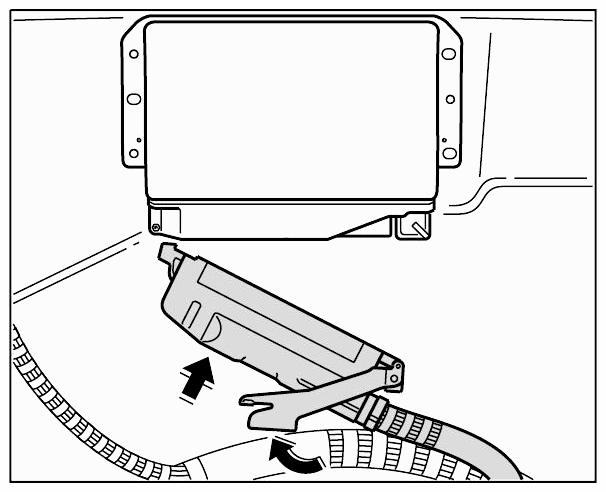

    Fig 1: Connecting Electric Connector
    G09586869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push control unit into the support and engage it at the left and right.

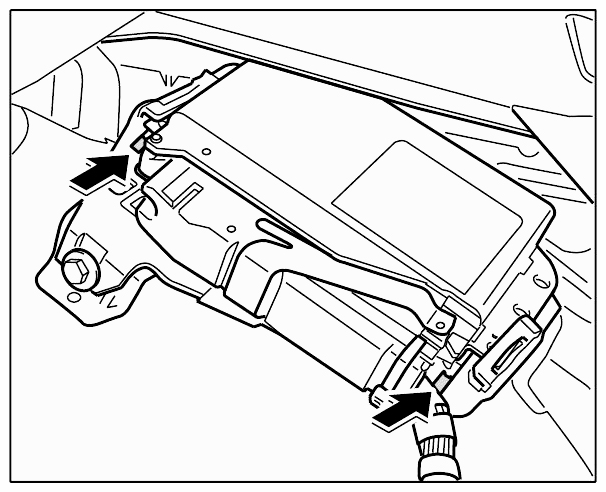

    Fig 2: Locating Control Unit Support
    G09586870Courtesy of PORSCHE CARS NORTH AMERICA, INC.
