Removing Selector Support

WARNING: This page is about a different variant/trim than selected.

Move selector lever to position "P".
Disconnect selector support
1. 2.1. Open the bayonet lock -2- on the parking lock cable, pull it off and disengage it at the support.
2. 2.2. Release and pull off electric multiple plug connector -3- .

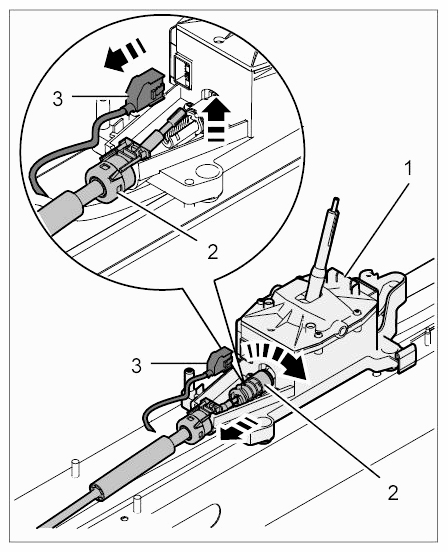

Fig 1: Disconnecting Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove selector support.
Unscrew nuts -2- and remove selector support -1- in an upward direction.

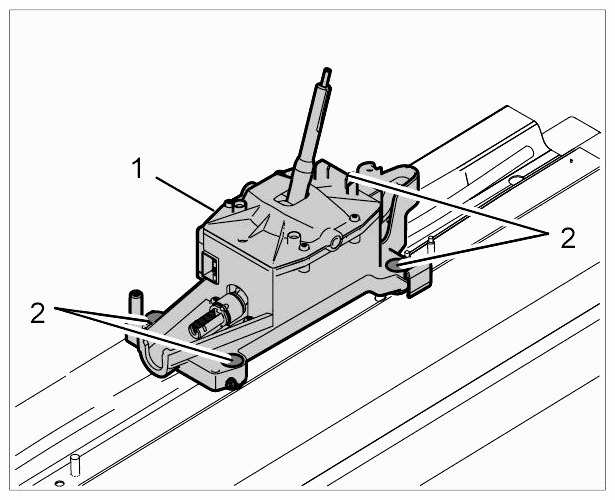

Fig 2: Identifying Selector Support And Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
