Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install support plate.
1. 1.1. Install support plate.
  Fit support plate -2- and screw in and tighten M10 x 25 screws and M10 nuts.

  → Tightening torque: 65 Nm (48 ftlb.)

  → Tightening torque: 65 Nm (48 ftlb.)
2. 1.2. Install diagonal braces.
  Fit diagonal braces -1- and screw in and tighten M10/M12 screws and M10 nuts.

  M10

  → Tightening torque: 65 Nm (48 ftlb.)

  M12

  → Tightening torque: 110 Nm (81.5 ftlb.)

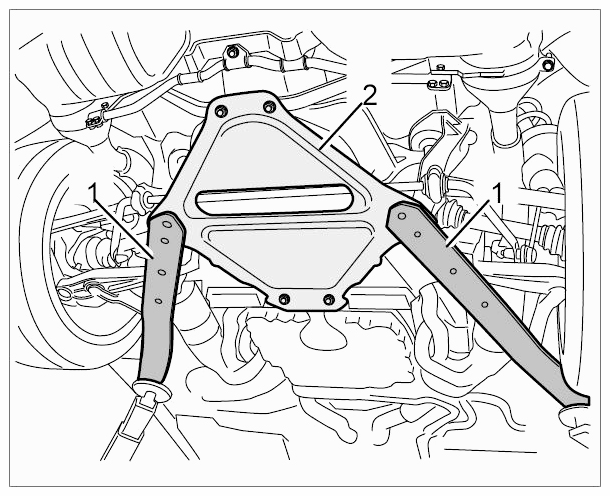

Fig 1: Installing Support Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
