Filling ATF Clutch Fluid

Information

Affix adhesive tape -1-  to the area between the transmission housing and ATF pan to prevent dirt from getting into the oil pan.

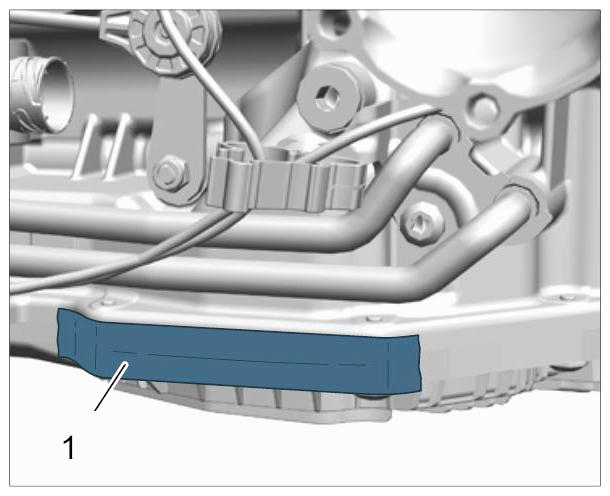

Fig 1: Identifying Adhesive Tape On Transmission

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 1.1. Unscrew ATF oil filler screw -1-  .

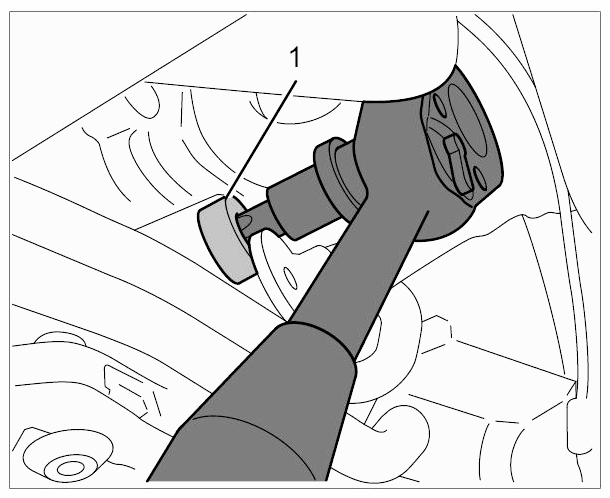

   Fig 2: Removing ATF Oil Filler Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Fill in ATF oil at the oil filler bore using manual metering pump WE 1372  until ATF oil emerges.

   Information

   ATF specifications for Porsche Doppelkupplung (PDK):

   • Storage: Store in a dry place, away from direct sunlight, at a temperature not less than -40 °C and not higher than +50 °C
   • Storage time: 5 years from fill date on container
   • Before using oil: Shake the container well for at least 10 seconds.

   Information

   Only use oil approved by Porsche in the Porsche Doppelkupplung .

3. 1.3. Screw in and tighten ATF oil filler screw -1-  .

   The Porsche Doppelkupplung must then be prepared and the ATF oil level checked. → 370235 CHECKING AND TOPPING UP ATF
