Draining ATF Clutch Fluid

1. 1.1. Unscrew ATF oil drain plug -1-  and drain ATF oil.
   WARNING: Hot fluid

   • Danger of scalding

   → Let the fluid cool down.

   → Wear personal protective gear.

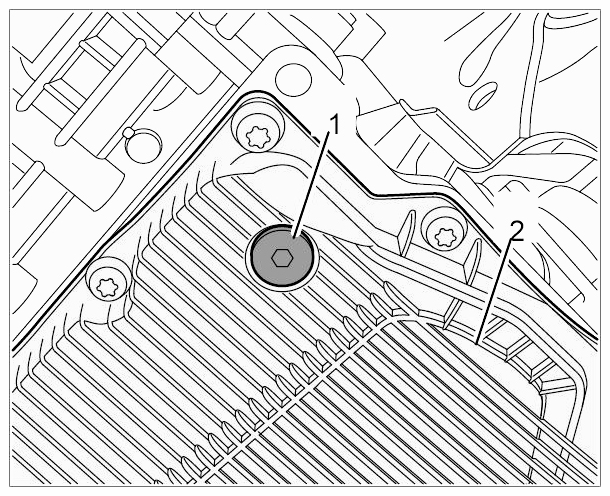

   Fig 1: Identifying ATF Oil Drain Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Tighten new ATF oil drain plug -1-  .

   → Tightening torque: 15 Nm (11 ftlb.) +3 Nm (+2 ftlb.)

Fill in ATF oil until ATF emerges at the filler bore.

ATF filling device Nr.161

→ 370235 CHECKING AND TOPPING UP ATF CLUTCH FLUID
