Installing Side Section Reinforcement

→ Press on joint immediately after applying adhesive. Otherwise the adhesive bead must be removed and pre-treatment of the surface and application of the adhesive must be repeated.

→ Do not apply pressure to bonded parts until hardening is complete.

1. Applying adhesive
   1. 1.1. Apply adhesive to the inside of side section reinforcement in the area -A-  and -B-  in the form of a triangular bead -dimension X = approx. 3 mm-  . See: Working with body structural adhesive → Information On The Use Of Structural Adhesives In Vehicle Construction

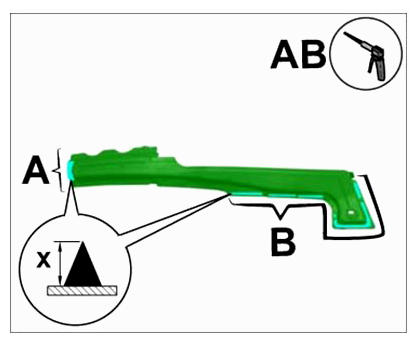

   Fig 1: Applying Structural Adhesive Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fitting the side section reinforcement to the body
   1. 2.1. Fit the side section reinforcement to the body and fix in place with tensioning clamps.
3. Securing the side section reinforcement
   1. 3.1. Secure the side section reinforcement in the area -A-  and -B-  with rivets -1-  .

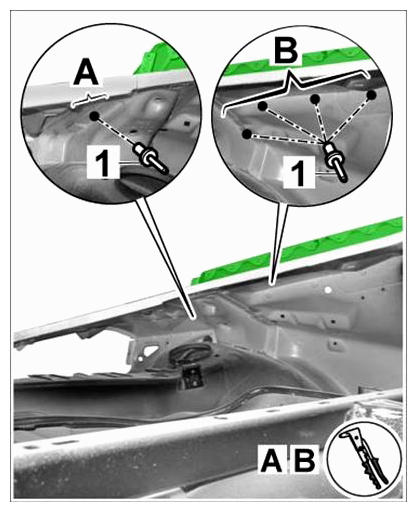

   Fig 2: Securing Side Section Reinforcement Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Welding in the side section reinforcement
   1. 4.1. Resistance spot-weld the side section reinforcement in area -A-  and -B-  .

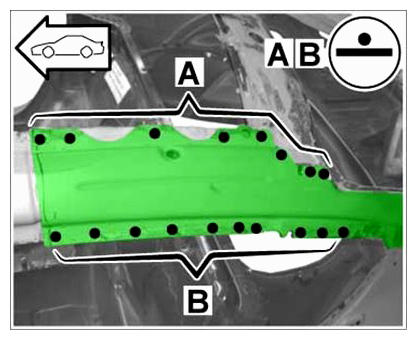

   Fig 3: Identifying Spot-Weld Side Section Reinforcement Area (A And B)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Welding in the side section reinforcement
   1. 5.1. Plug-weld the side section reinforcement in area -A-  using shielding gas.

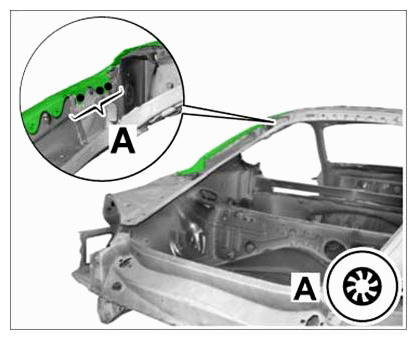

   Fig 4: Identifying Plug-Weld Side Section Reinforcement Area (A)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Filling out side section reinforcement with foam
   1. 6.1. Fill out the side section reinforcement with foam through the bore in area -A-  2x, 1 sec. each.

      See: Processing body acoustic foam 2K-AFS Vario. → Using 2K Acoustic Filler Foam "AFS-Vario" On The Body

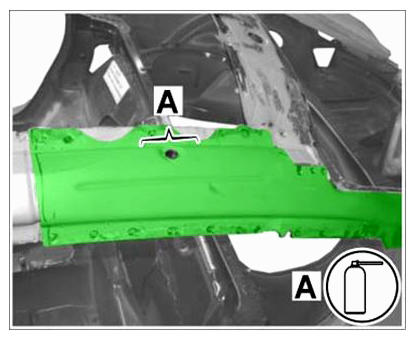

      Fig 5: Identifying Side Section Reinforcement Of Foam Bore Area

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Install side panel. → Installing Side Section
8. Install outer hinge pillar. → Installing Outer Hinge Pillar
