Installing Belt Tensioner

  1. Position belt tensioner from above and secure it with the fastening screw at the top -arrow-  .

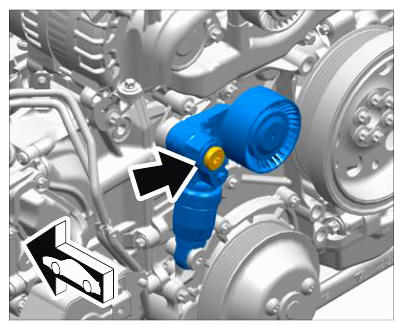

    Fig 1: Locating Belt Tensioner Screw (At Top Of Belt Tensioner)
    G09585344Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit and tighten bottom fastening screw -arrow-  on the tensioner.

    Tightening torque 28 Nm (21 ftlb.) +/-3 Nm (+/-2 ftlb.)

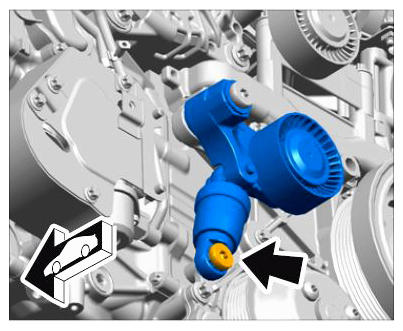

    Fig 2: Locating Belt Tensioner Screw (At Bottom Of Belt Tensioner)
    G09585345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Tighten fastening screw at the top.

    Tightening torque 28 Nm (21 ftlb.) +/-3 Nm (+/-2 ftlb.)
