Installing Front Stabilizer

Replace all lock nuts. Observe correct tightening torques. → 4001TW TIGHTENING TORQUES FOR FRONT AXLE .

1. 1.1. Insert the anti-roll bar into the vehicle (guide in sideways) and position it.
2. 1.2. Secure the anti-roll bar (on both sides) -arrows-  .

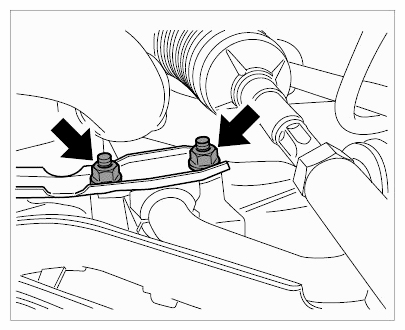

   Fig 1: Locating Front Anti-Roll-Bar Mounting Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Installing .

1. 3.1. Fit new M10 collar nuts on the connecting link joint (at the left and right). Counter when tightening. Observe three-step tightening procedure.

   Step 1: → Initial tightening torque: 50 Nm (37 ftlb.)

   Step 2: → Loosen by 1/4 turn after initial tightening: Loosen by 90°

   Step 3:  Tighten to 65 Nm (48 ftlb.). → Final tightening torque: 65 Nm (48 ftlb.)
