Installing outer rear wheel housing

1. Fitting outer rear wheel housing to the body

1.1. Fit outer rear wheel housing to the body and fix in place with tensioning clamps.

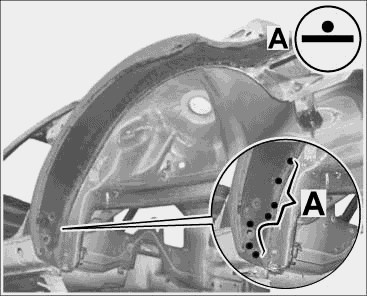

Fig 1: Welding in outer rear wheel housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Welding in outer rear wheel housing

2.1. Resistance spot-weld outer rear wheel housing in area -A-  . See Fig 1.

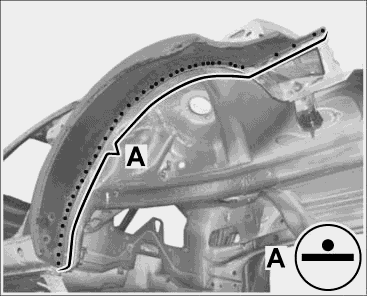

Fig 2: Welding in outer rear wheel housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Welding in outer rear wheel housing

3.1. Resistance spot-weld outer rear wheel housing in area -A-  . See Fig 2.

4. Install side panel. → 535555 Replacing side panel - section on "Installing"
