Removing light frame (section)

Installation Location:

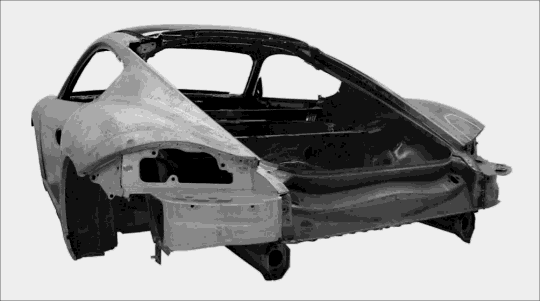

Fig 1: Frame For Light Component Location (Section)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Cutting through light frame

Courtesy of PORSCHE OF NORTH AMERICA, INC.

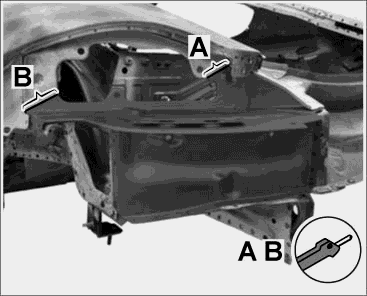

1. Cutting through light frame

1.1. Cut through the light frame of connection point -A- using the body saw. See Fig 2.

1.2. Cut through the light frame of connection point -B- using the body saw. See Fig 2.

Fig 3: Separating and milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

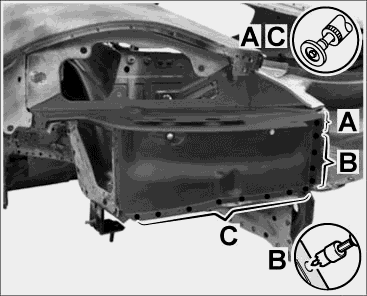

2. Separating and milling off spotwelds

2.1. Separate spotwelds in areas -A- and -C- using a parting grinder. See Fig 3.

2.2. Mill off spotwelds in area -B- using a spotweld cutter. See Fig 3.

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

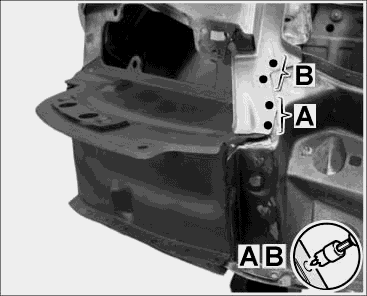

3. Milling off spotwelds

3.1. Mill off spotwelds in areas -A- and -C- using a spotweld cutter. See Fig 4.

3.2. Mill off spotwelds in areas -B- and -D- using a spotweld cutter (2 plate thicknesses). See Fig 4.

Fig 5: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

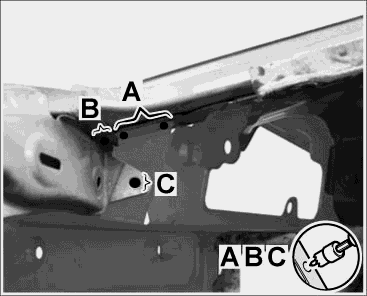

4. Milling off spotwelds

4.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter (2 plate thicknesses). See Fig 5.

Fig 6: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

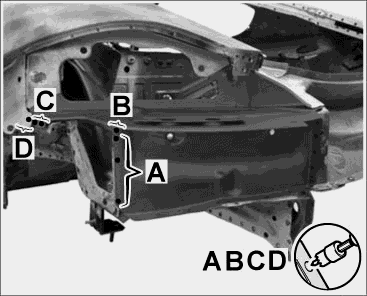

5. Milling off spotwelds

5.1. Mill off spotwelds in areas -A- and -C- using a spotweld cutter. See Fig 6.

5.2. Mill off spotwelds in area -B- using a spotweld cutter (2 plate thicknesses). See Fig 6.
