Removing side section

Installation Location:

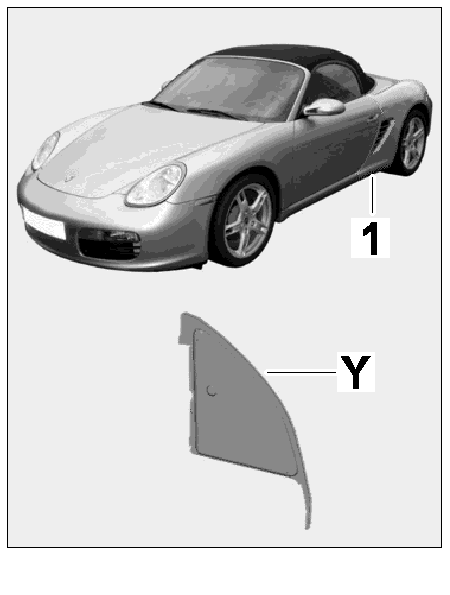

Fig 1: Side Section Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1 - Side section

Y - Seal

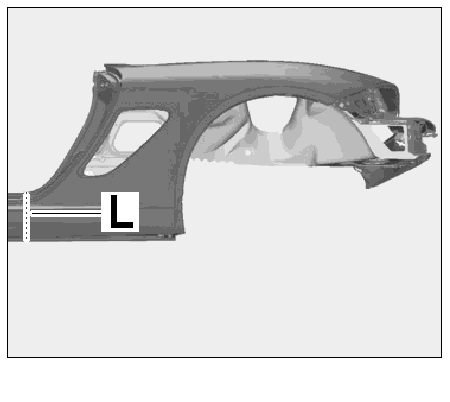

Fig 2: Determining cut

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Determining cut

1.1. Position the cut L on the lower side member so that the replacement body part overlaps the lower side member by approx. 60 mm. Mark the cut.

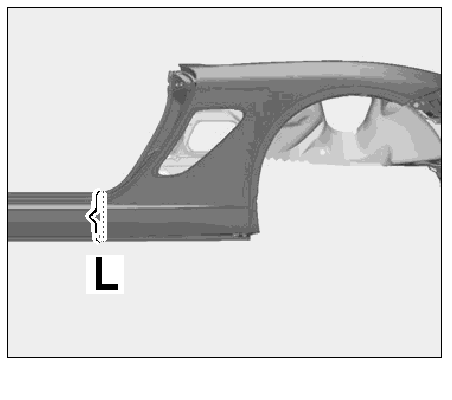

Fig 3: Cutting the lower side member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Cutting through the lower side member

2.1. Cut through the side section at the marked connection point L .

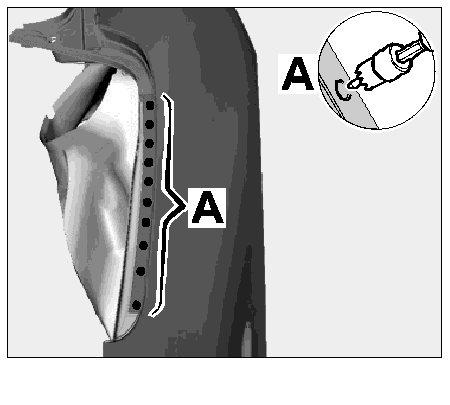

Fig 4: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Mill off spotwelds.

3.1. Mill off spotwelds in area A using a spotweld cutter.

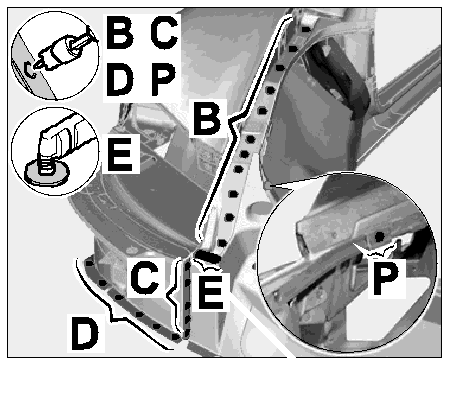

Fig 5: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Mill off spotwelds.

4.1. Mill off spotwelds in areas B, C, D, P with a spotweld cutter.

4.2. Cut through the shielding gas weld in area E using the parting grinder.

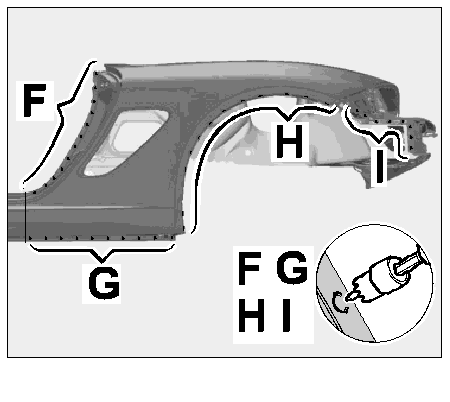

Fig 6: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Cutting the spotwelds

5.1. Mill off spotwelds in areas F, G, H, I using a spotweld cutter.

Fig 7: Mill off and cut through spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

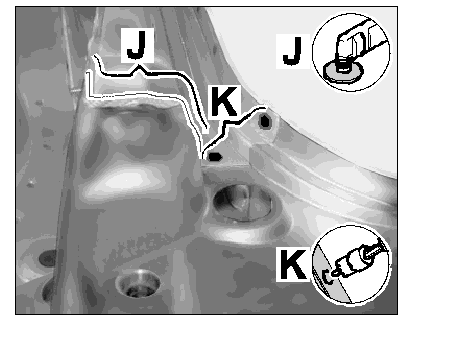

6. Mill off and cut through spotwelds

6.1. Mill off spot welds in area K using a spotweld cutter.

6.2. Cut through the side section at the connection point J with the parting grinder.

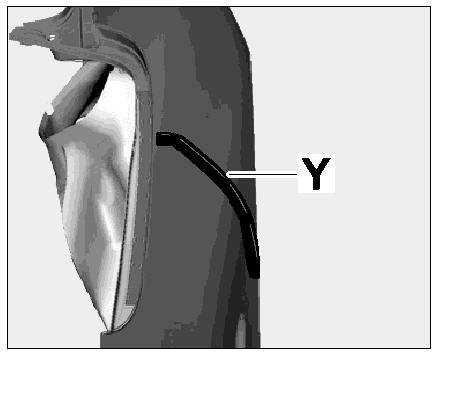

Fig 8: Removing expanded sealant

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Remove expanded sealant

7.1. The outer side section is factory sealed to the inner side section with expanded sealant Y . The expanded sealant will be destroyed when replacing the side section and must be replaced.
