Removing auxiliary brake light

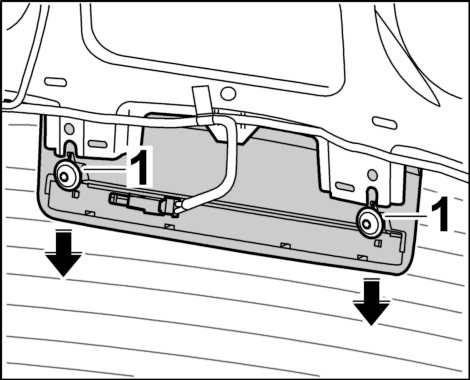

Fig 1: Loosening fastening screws
GP00017931Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Loosen the two fastening screws -1-  for the auxiliary brake light and pull the auxiliary brake light downwards out of the mounting point on the rear lid. See Fig 1.

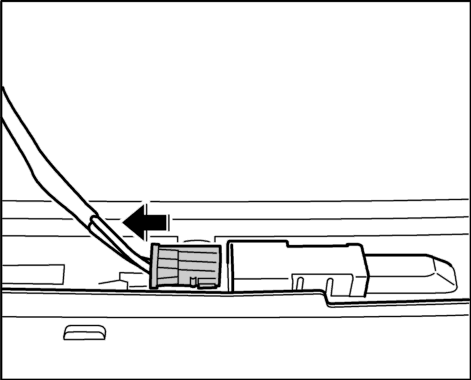

Fig 2: Pulling off connector
GP00017932Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Pull off electric connector on the auxiliary brake light.
