Removing halogen bulb

Installation Location:

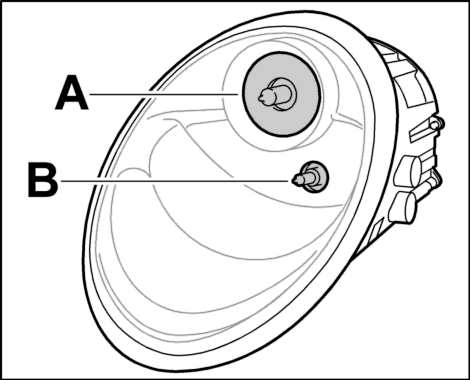

Fig 1: Installation position shown on the 911 headlight
GP00017820Courtesy of PORSCHE OF NORTH AMERICA, INC.

A  - Halogen bulb

B  - High beam bulb

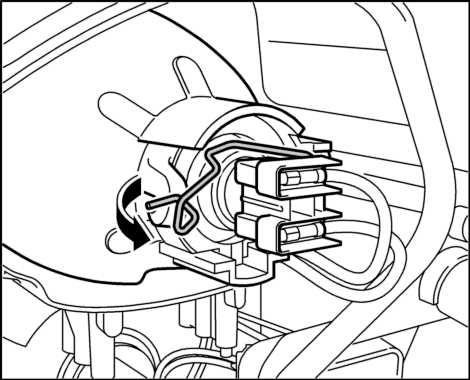

Fig 2: Disengaging securing clip
GP00017817Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Disengage securing clip.

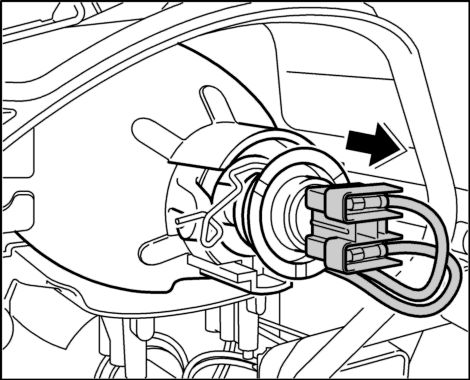

Fig 3: Pulling off electrical connector
GP00017818Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Pull electrical connector off bulb and remove bulb.
