Installing hazard warning light switch

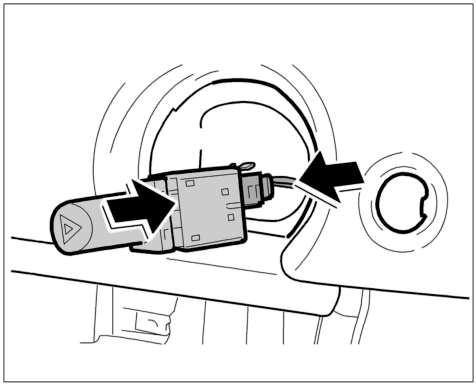

Fig 1: Connecting electric connector to hazard warning light switch
GP00017859Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Push the electric connector into the hazard warning light switch until the connector clicks into place.

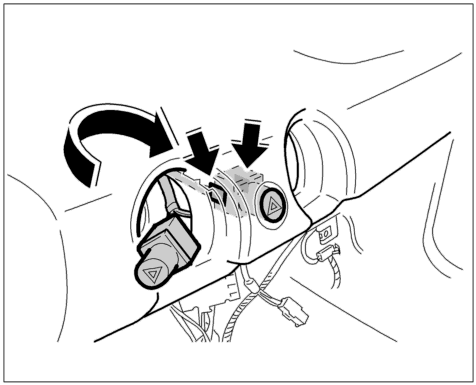

Fig 2: Pushing hazard warning light switch into the mounting point
GP00017860Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Push the hazard warning light switch at both sides into the mounting point in the dashboard until it clicks into place.
