Installing auxiliary headlamp

1. Insert parking light holder in the auxiliary headlight and lock it (bayonet lock). Push electric connector onto fog-light bulb until it clicks into place.

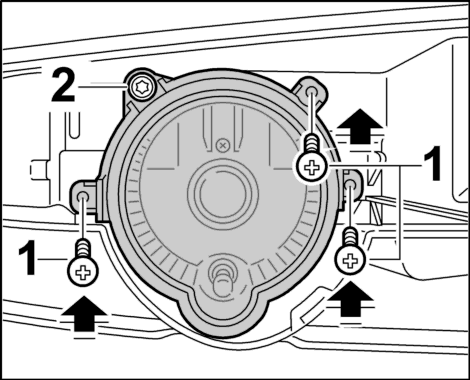

Fig 1: Tightening auxiliary headlight

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Position the auxiliary headlight in the front apron and secure it with the three fastening screws.

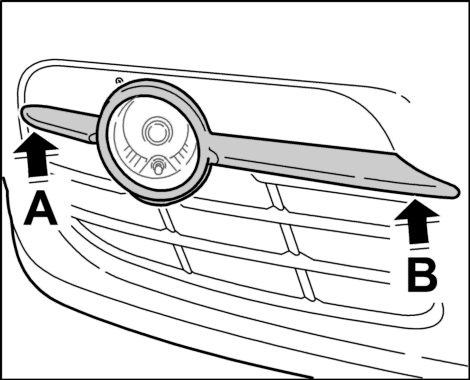

Fig 2: Clipping in cover for auxiliary headlight

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. First, insert cover laterally -A-  , then -B-  in the front apron and clip it in. See Fig 2.
