Removing gas discharge lamp

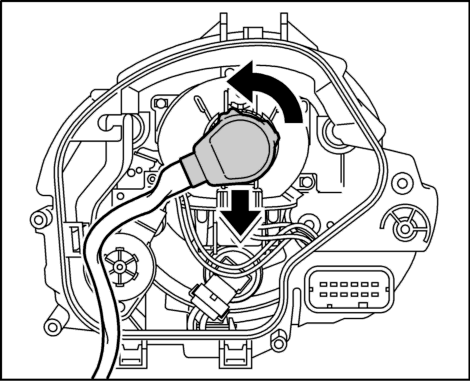

Fig 1: Releasing electric connector
GP00017906Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Turn connector to the left (bayonet lock) and pull it off.

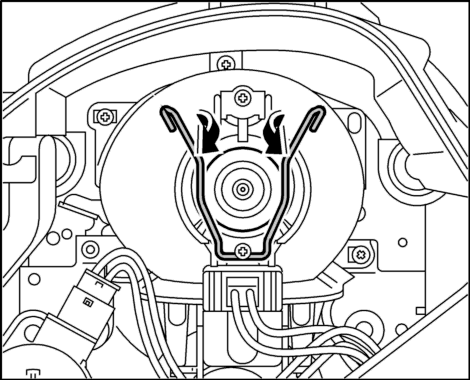

Fig 2: Disengaging retaining bows
GP00017908Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Disengage both retaining bows and pull out lamp.
