Removing hazard warning light switch

Installation Location:

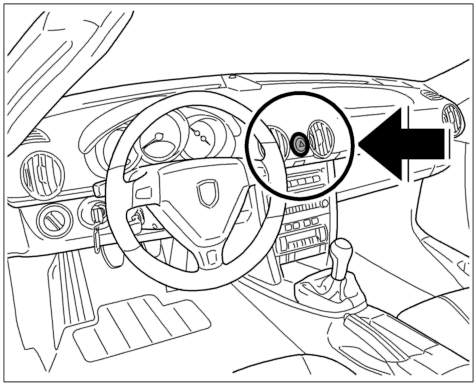

Fig 1: Installation position

Courtesy of PORSCHE OF NORTH AMERICA, INC.

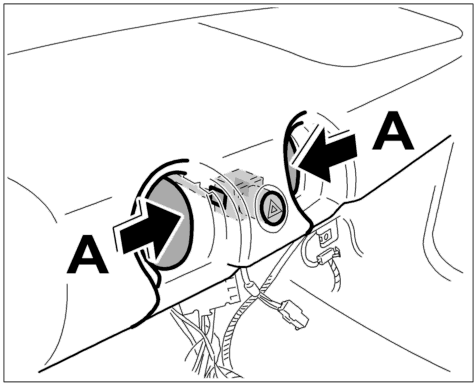

Fig 2: Releasing hazard warning light switch at left and right

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Reach in through the openings of the removed middle air vent and release the hazard warning light switch at the left and right.

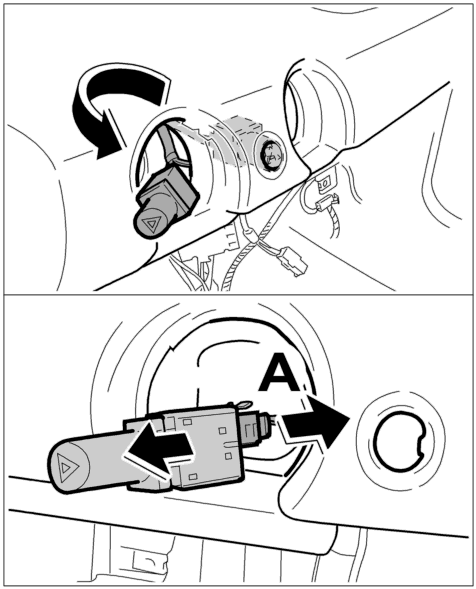

Fig 3: Unlocking the electric connector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Take the hazard warning light switch out sideways through the dashboard, release the electric connector and pull it off.
