Installing stop light switch

NOTE:
  • The brake light switch setting is firmly fixed and is not adjustable!
  • The brake light switch may be fitted only once in order to ensure that it fits tightly!

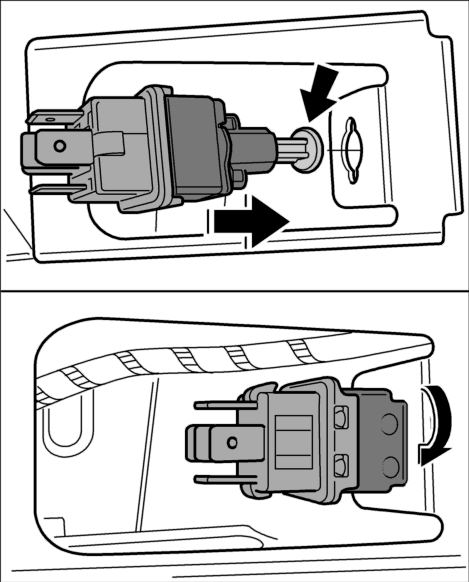

Fig 1: Installing stop light switch
GP00017851Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Before fitting the stop light switch, pull out the plunger (arrow) out of the stop light switch until the stop.

2. Insert stop light switch with the bayonet lock take-up bore, press in, and turn clockwise by 90°. This sets the tappet push rod to the exact length.

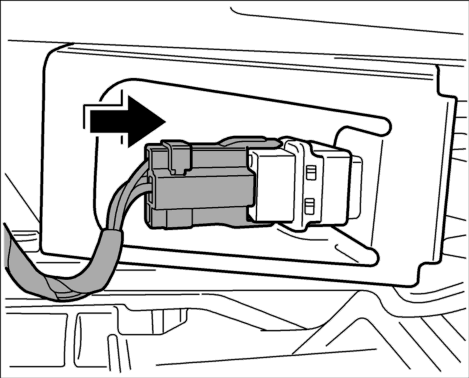

Fig 2: Connecting stop light switch plug
GP00017849Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Position and insert the plug until it is felt to engage.
