Installing tail light

1. Push on the plate for the bulbs on the rear light until the plate clicks into place.

2. Check the seal for the rear light and if in doubt, replace.

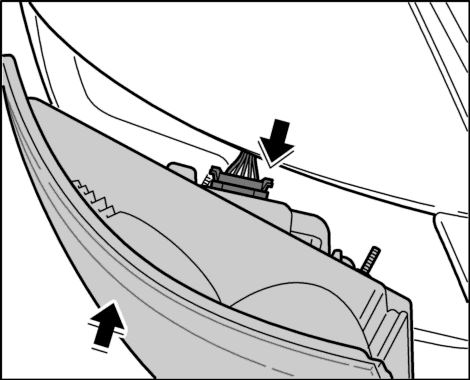

Fig 1: Plugging in connector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Push the central connector for the tail light together until the connector is felt to engage.

4. Push the electric lead into the rear wing and insert the tail light into the mounting.

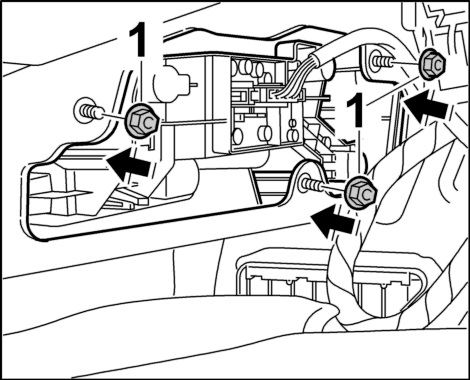

Fig 2: Screwing down the tail light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Screw down the rear light with the three fastening nuts -1-  . → Tightening torque: 2 ftlb.  See Fig 2.
