Removing high beam halogen bulb

Installation Location:

Fig 1: Installation position shown on the 911 headlight

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A  - Halogen bulb

B  - High beam bulb

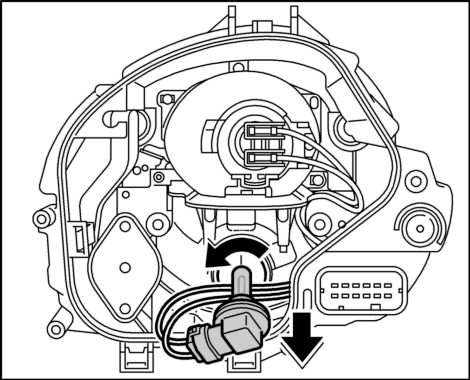

Fig 2: Unscrewing bayonet lock

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Unscrew high beam bulb, bayonet lock counter-clockwise.

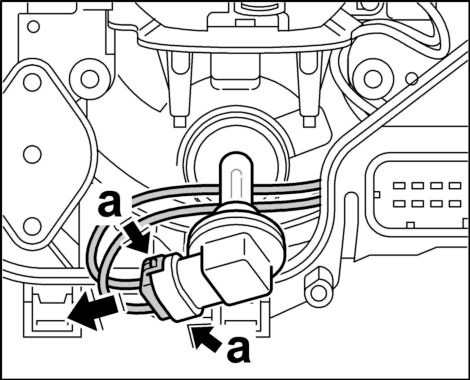

Fig 3: Unplugging electrical connector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Unclip electric connector -a-  and unplug. See Fig 3.
