Installing main headlight cap

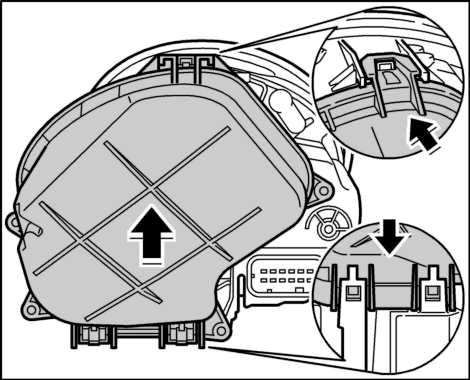

Fig 1: Positioning cap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position cap on main headlight and press into place, making sure that the cap engages once at the top and twice at the bottom.

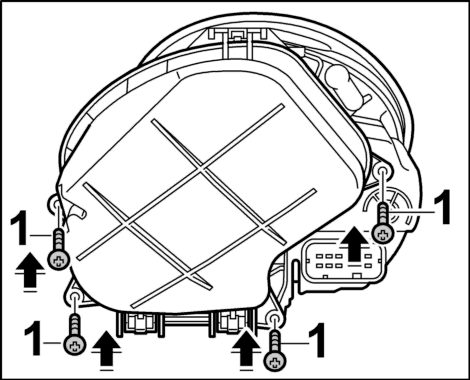

Fig 2: Screwing in the fastening screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Screw in four fastening screws -1-  for the cap. See Fig 2.
