Installing high beam halogen bulb
CAUTION:
Danger of injury! Danger of material damage if bulbs are used or handled incorrectly!
→ When installed, the headlight has a high voltage.
→ Only bulbs specified in the bulb table may be used!
→ Bulbs with a higher wattage may damage the bulb housing!
→ To prevent short circuits, the load in question must be switched off when changing bulbs!
→ New bulbs must be clean and free of grease. Therefore, never touch bulbs with your bare hands! To change the bulbs, use a cloth or soft paper.
→ Observe the safety instructions when replacing a bulb in a Bi-Xenon headlight.
→ In certain states, it is compulsory to carry spare light bulbs.

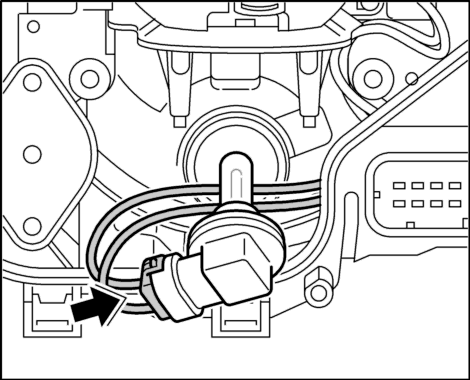

1. Push electric connector onto bulb until it clicks into place.

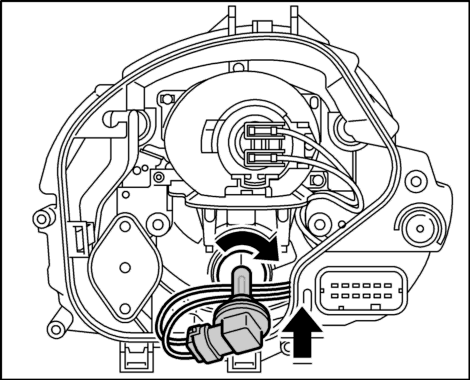

2. Insert high beam bulb into headlight and lock with bayonet lock.
