Removing headlight mount

NOTE: The main headlights are fitted into the body at the factory.

A new adjustment may only be made in the case of accident repairs or replacement of the main headlights.


The headlight mount is secured to the body by 3 knurled nuts.
Fig 1: Adjusting element
GP00017797Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Unscrew the 3 knurled nuts from the adjusting elements.

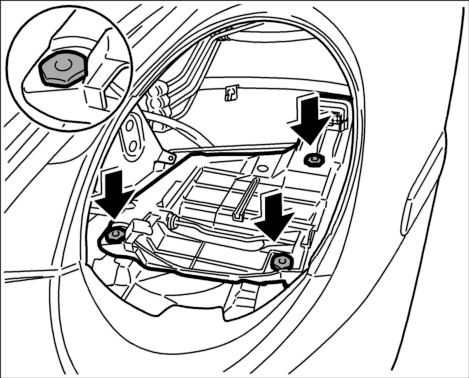

Fig 2: Mount installation
GP00017795Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Pull mount forwards out of the body.
