Installing headlight mount

NOTE: The main headlights are fitted into the body at the factory.

A new adjustment may only be made in the case of accident repairs or replacement of the main headlights.


The headlight mount is secured to the body by 3 knurled nuts.

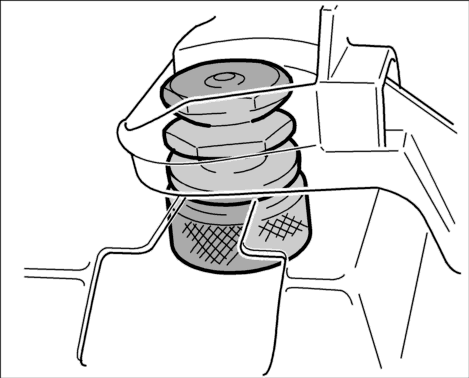

Fig 1: Adjusting element
GP00017797Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Push the mount into the body and screw down with three knurled nuts. → Tightening torque: 6 ftlb. +/-1.5 ftlb.

2. Check that the gaps match the specified gap dimensions → 50 IN DIAGRAM - BODY GAP DIMENSIONS - AS OF MY 2005 (CAYMAN S, CAYMAN S RHD) or 50 IN DIAGRAM - BODY GAP DIMENSIONS - AS OF MY 2005 (BOXSTER, BOXSTER RHD, BOXSTER S, BOXSTER S RHD) . Adjust the headlight mount if necessary. → 941419 Removing and installing headlight mount - testing and adjusting .
