Removing inner rear wheel housing

Installation Location:

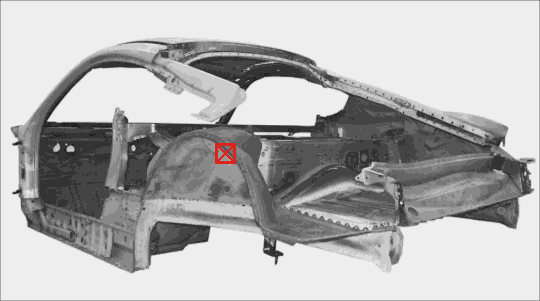

Fig 1: Installation position of inner rear wheel housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

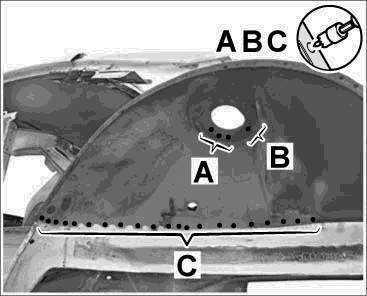

Fig 2: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Milling off spotwelds

2.1. Mill off spotwelds in areas -A, B, C- using a spotweld cutter. See Fig 2.

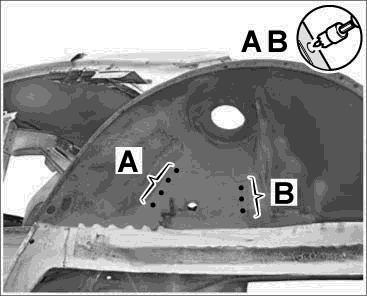

Fig 3: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Milling off spotwelds

3.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter. See Fig 3.

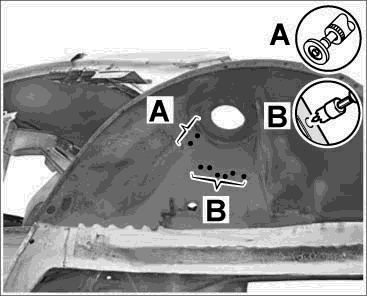

Fig 4: Separating and milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Separating and milling off spotwelds

4.1. Separate spotwelds in area -A- using a parting grinder. See Fig 4.

4.2. Mill off spotwelds in area -B- using a spotweld cutter. See Fig 4.

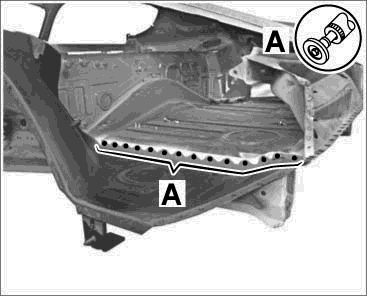

Fig 5: Separating spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Separating spotwelds

5.1. Separate spotwelds in area -A- using a parting grinder. See Fig 5.

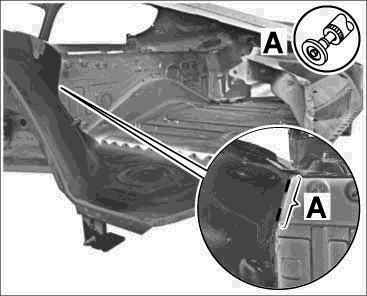

Fig 6: Separating inert-gas welded seams

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Separating inert-gas welded seams

6.1. Separate inert-gas welded seams in area -A- using a parting grinder. See Fig 6.
