Removing front inner side section

1. Remove center side member. → 514855 21 Replacing center side member - section on "Removing"

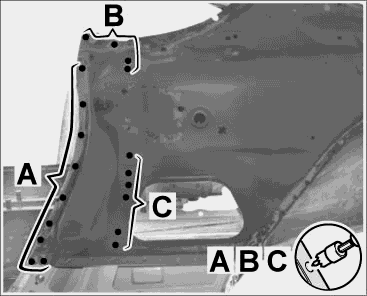

Fig 1: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Milling off spotwelds

2.1. Mill off spotwelds in areas -A, B, C- using a spotweld cutter. See Fig 1.

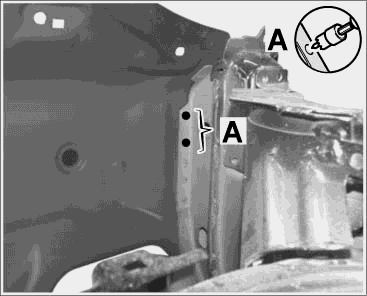

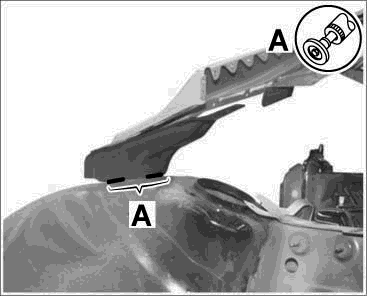

Fig 2: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Milling off spotwelds

3.1. Mill off spotwelds in area -A- from the inside using a spotweld cutter. See Fig 2.

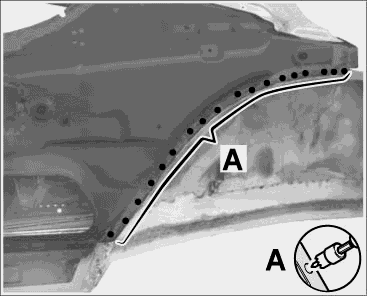

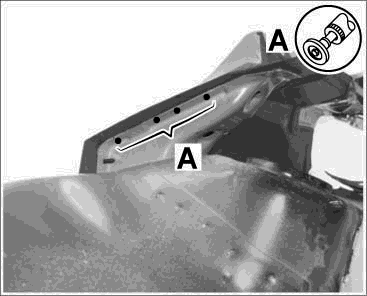

Fig 3: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Milling off spotwelds

4.1. Mill off spotwelds in area -A- using a spotweld cutter. See Fig 3.

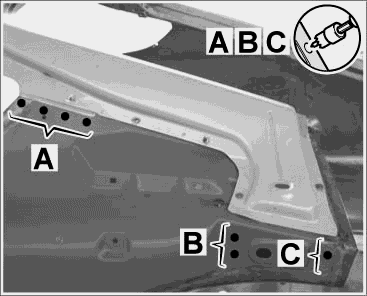

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Milling off spotwelds

5.1. Mill off spotwelds in areas -A, B, C- using a spotweld cutter. See Fig 4.

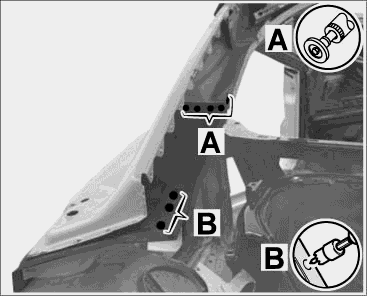

Fig 5: Separating and milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Separating and milling off spotwelds

6.1. Separate spotwelds in area -A- using a parting grinder. See Fig 5.

6.2. Mill off spotwelds in area -B- using a spotweld cutter. See Fig 5.

Fig 6: Separating spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Separating spotwelds

7.1. Separate spotwelds in area -A- from below using a parting grinder. See Fig 6.

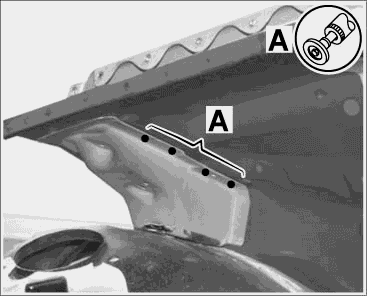

Fig 7: Separating spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Separating spotwelds

8.1. Separate spotwelds in area -A- from below using a parting grinder. See Fig 7.

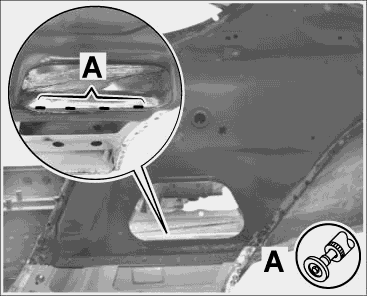

Fig 8: Separating inert-gas welded seams

Courtesy of PORSCHE OF NORTH AMERICA, INC.

9. Separating inert-gas welded seams

9.1. Separate inert-gas welded seams through the cut-out in area -A- using a parting grinder. See Fig 8.

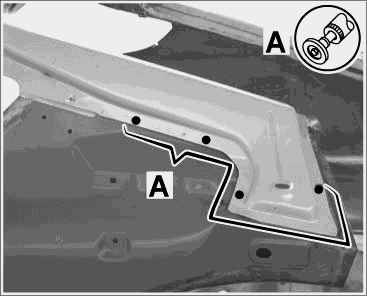

Fig 9: Loosening rivet connections

Courtesy of PORSCHE OF NORTH AMERICA, INC.

10. Loosening rivet connections

10.1. Separate rivet connections in area -A- using a parting grinder and remove them. See Fig 9.

NOTE: Separating body parts

In the case of bonded panel joints with a hardened bonded layer on the outer panel, apply a generous amount of heat to heat up the outer panel in the area of the spotwelds. Refer to 50 IN Processing structural body adhesive - as of MY 2005 (All Models) .
After removing the loosened body part, old adhesive must be removed and any uneven spots sanded down. The flange area must then be pre-treated for bonding. For the procedure see: Information on the use of structural adhesive in vehicle manufacturing Refer to 50 IN Processing structural body adhesive - as of MY 2005 (All Models) .

11. Loosening bonded joint

11.1. Heat up bonded joint in the areas between the side reinforcement and front inner side section using the Leister Elektron hot-air gun; see Gr. 3.5, Workshop Equipment Manual 00000 .

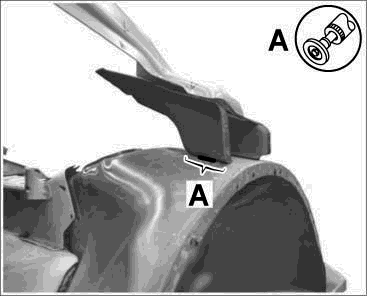

Fig 10: Separating inert-gas welded seams

Courtesy of PORSCHE OF NORTH AMERICA, INC.

12. Separating inert-gas welded seam

12.1. Separate inert-gas welded seam in area -A- using a parting grinder. See Fig 10.

Fig 11: Separating inert-gas welded seams

Courtesy of PORSCHE OF NORTH AMERICA, INC.

13. Separating inert-gas welded seams

13.1. Separate inert-gas welded seams in area -A- using a parting grinder. See Fig 11.
