Preparing connection areas of the body for installing the side section

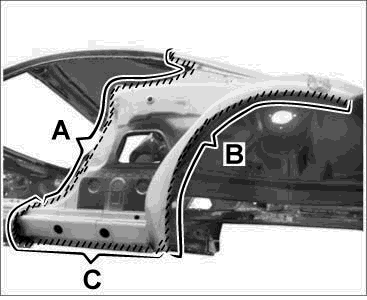

Fig 1: Preparing connection areas of the body for installing the side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C- using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 1.

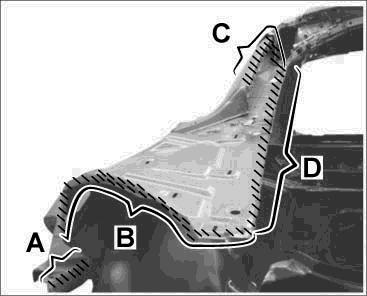

Fig 2: Preparing connection areas of the body for installing the side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C, D- using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 2.

3. Coating spot-weld flange areas with zinc powder paint

3.1. Coat all spot-weld flange areas with zinc powder paint.

Fig 3: Preparing bonded flanges

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Preparing bonded flanges

4.1. Prepare bonded flanges in the marked area -A- . See Fig 3.

See: Working with adhesive Refer to 50 IN Processing structural body adhesive - as of MY 2005 (All Models) ..

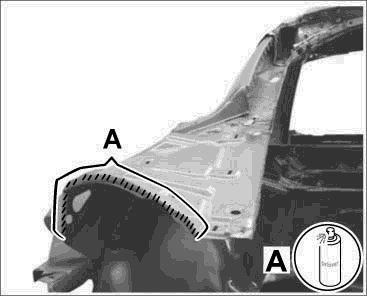

Fig 4: Priming bonded flanges

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Priming bonded flanges

5.1. Prime bonded flanges on the body in the marked area -A- . See Fig 4.

See Working with primer Refer to 50 IN Processing structural body adhesive - as of MY 2005 (All Models) .
