Removing brake light switch

Installation Location:

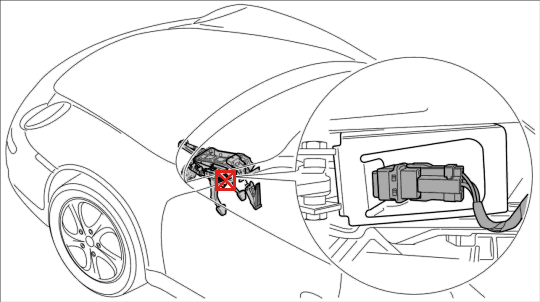

Fig 1: Overview of stop light switch, shown on the 911

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Switch off ignition and remove ignition key.

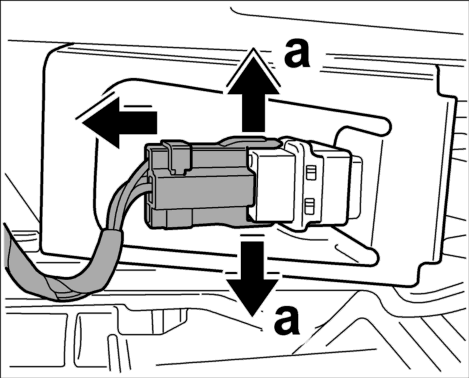

Fig 2: Disconnecting plug for stop light switch

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Disengage plug from stop light switch on both sides (Arrows a) and remove.

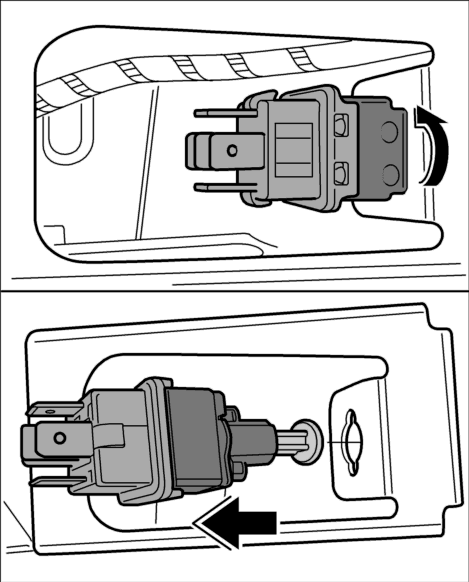

Fig 3: Removing stop light switch

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Turn brake light switch 90° counter-clockwise and remove it.
