Removing clutch pedal: Removing

1. Remove the cover and side trim panel for the fusebox in the left driver's footwell.

Fig 1: Clutch pedal switch

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Carefully pull off the connector from the clutch pedal switch (and interlock switch if necessary) -Arrows-  . See Fig 1.

3. Remove the relay carrier, vehicle electrical system control unit, and device support on the left above the clutch pedal.

4. Secure clutch power spring with a cotter pin, for example. Press the clutch pedal lightly, unclip the clutch power spring and remove.

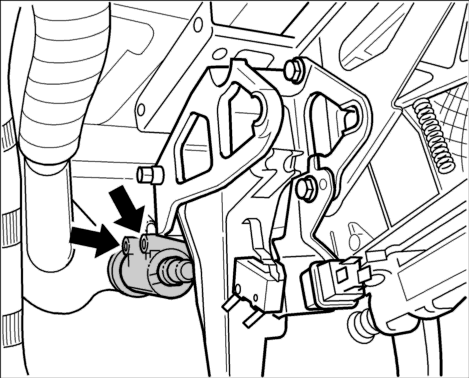

Fig 2: Clutch master cylinder

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Loosen the clutch master cylinder -Arrows-  (do not open the clutch system!) and remove the pin (master cylinder valve pushrod). See Fig 2.

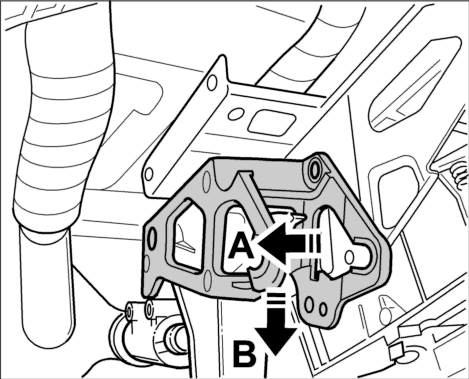

Fig 3: Bracket for clutch power spring

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Loosen bracket for clutch power spring (support for clutch pedal switch and remove interlock switch, if necessary) → Fig 3. Carefully move bracket for clutch power spring approximately 2-4 mm to the left -A-  . Carefully turn bracket for clutch power spring clockwise on the pedal bearing axle approximately 10-15 degrees -B-  . See Fig 3.

7. Pull out bracket for clutch power spring to the left and take out the clutch pedal.
