Installing Support Plate

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert support plate -A-  without undue force → Installing Support Plate
  2. right and left diagonal braces -B-  .
  3. Tighten screws and nuts to the specified torque → Tightening Torques For Rear Axle  .
  4. Fit rear underbody panel.

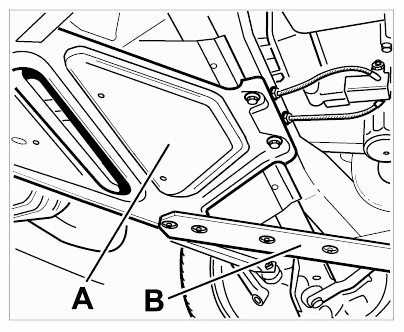

    5. Fig 1: Identifying Support Plates
    G09587559Courtesy of PORSCHE CARS NORTH AMERICA, INC.
