Installing Toe Control Arm

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install toe control arm -1-  . Replace all lock nuts.

    Observe correct tightening torques. → Tightening Torques For Rear Axle

    1. 1.1. Install eccentric threaded joint (toe control arm) on the rear-axle carrier side section.

      Set the basic position of the toe eccentrics at the marked position on the rear-axle carrier side section and tighten lock nuts.

    2. 1.2. Fit toe control arm -1-  on the wheel bearing housing -1b-  .

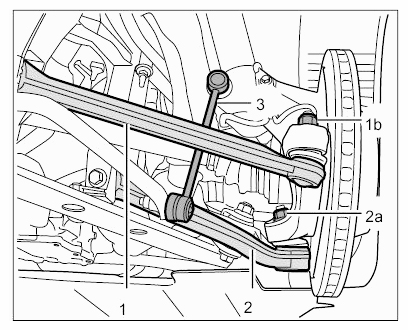

    Fig 1: Identifying Rear Toe And Transverse Control Arm
    G09587552Courtesy of PORSCHE CARS NORTH AMERICA, INC.
