Removing Light Bulb For Reversing Light

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

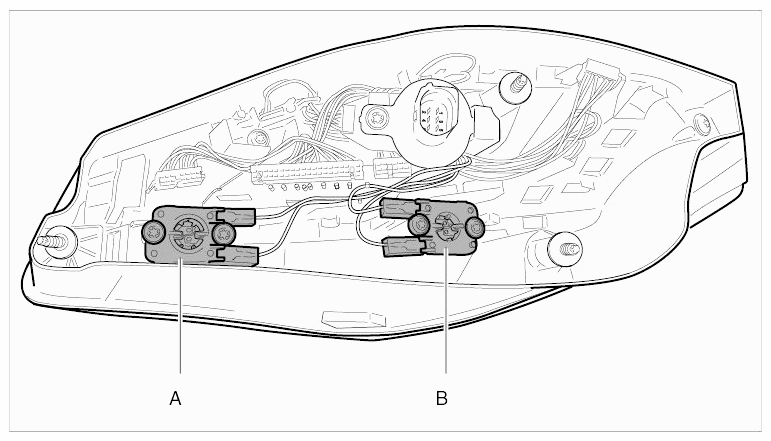

Fig 1: Overview Of Left Tail Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Light bulb for reversing light
Light bulb for direction indicator light

Information

If the tail light is only removed and installed again, the seal for the tail light can be re-used.

If the seal for the tail light is damaged, this seal must be replaced.

If the seal is removed from the light, this seal must be replaced.

If necessary: Pull off the seal and carefully clean the sealing face with a knife.

Pull off the tail light seal and carefully clean the sealing face with a knife, for example.
Pull off the two electric connectors -2- and -3- on the light bulb.
Unscrew the two fastening screws -4- for the light bulb.
Remove light bulb -5- from the tail light.

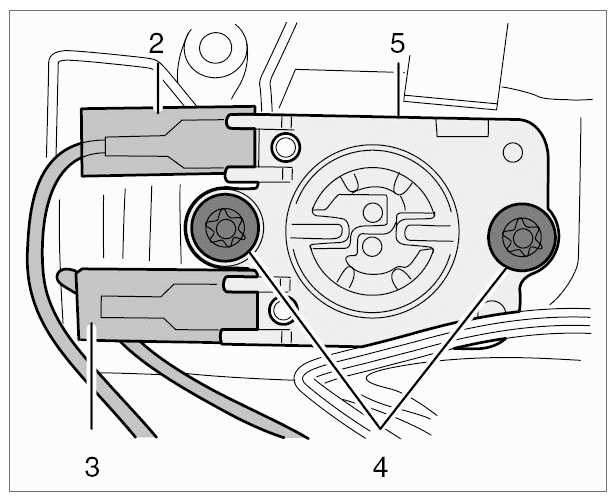

Fig 2: Pulling Off Connectors

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
