Removing Main Headlight Cover

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew the four fastening screws -1-  on the cover.

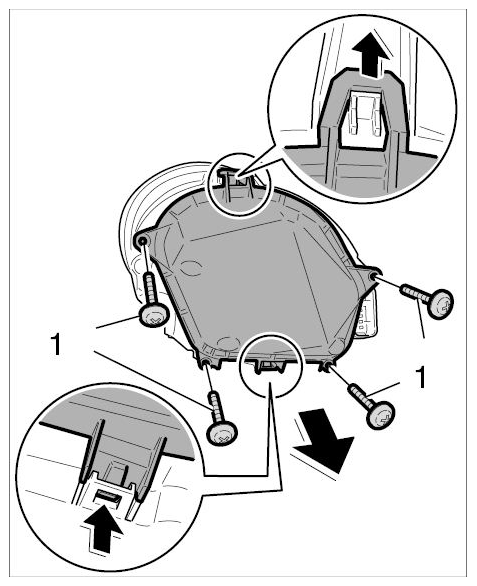

    Fig 1: Removing Main Headlight Cover
    G09593514Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the cover at one attachment point at the top and bottom and remove it from the main headlight.
  3. Remove control unit for gas-discharge headlight. → Removing Gas-Discharge Control Unit  .
