Installing Main Headlight Cover

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cover on the main headlight and press it on. Make sure that the cover engages at one attachment point at the top and bottom.
  2. Screw in the four fastening screws -1-  for the cover.

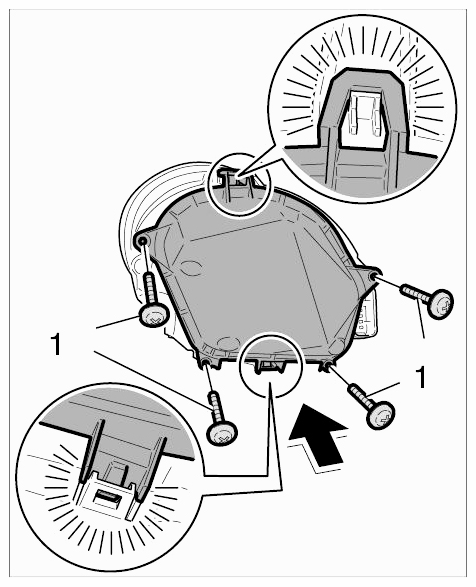

    3. Fig 1: Installing Main Headlight Cover
    G09593523Courtesy of PORSCHE CARS NORTH AMERICA, INC.
