Installing Gas-Discharge Control Unit

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Slide the control unit into the holder and secure with the two fastening screws.

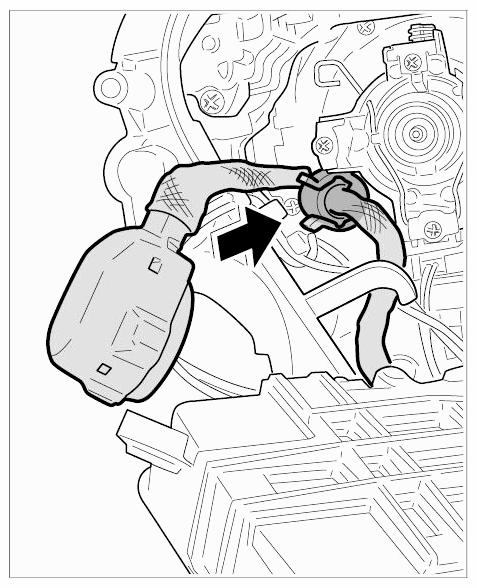

Engage the high-voltage line on the headlamp unit.

Fig 1: Engaging Line On Headlamp Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

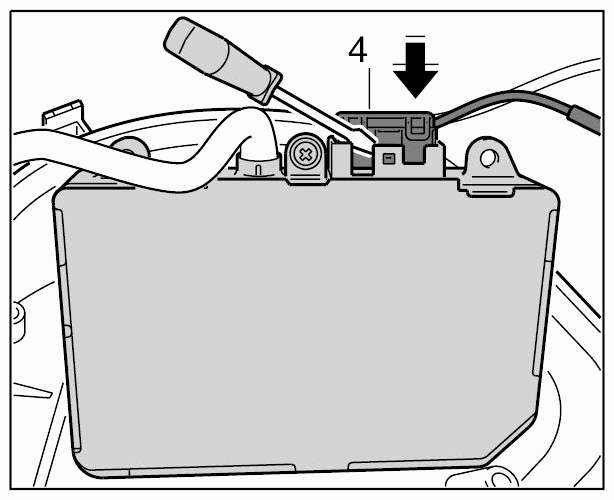

Push on electric connector -4- for the gas-discharge control unit until the connector engages securely.

Fig 2: Connecting Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

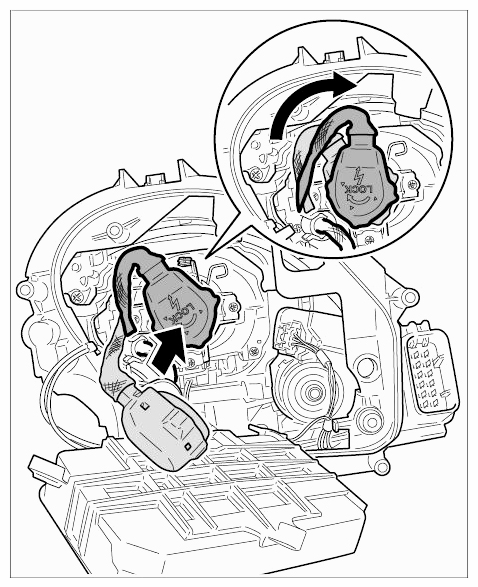

Connect electric connector to the gas-discharge headlight and turn it clockwise as far as it will go (bayonet lock).

Fig 3: Positioning Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

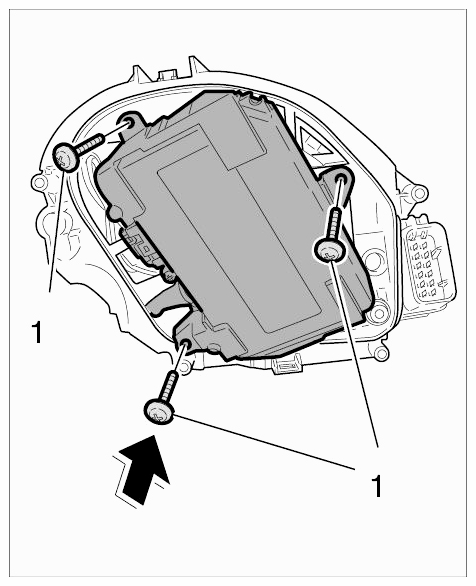

Fit gas-discharge control unit and secure with the three fastening screws -1- .

Fig 4: Securing Control Unit With Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
