Removing Side Direction Indicator Light

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver through the opening in the wheel housing liner, press on the spring clamp at the direction indicator light and remove the direction indicator light.

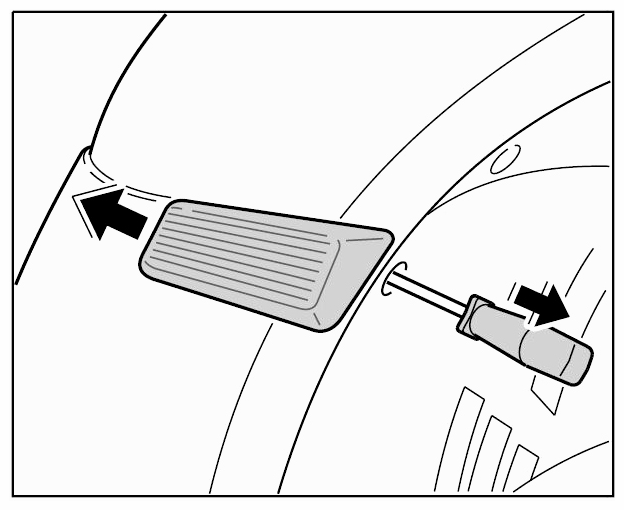

    Fig 1: Removing Side Direction Indicator Light
    G09593498Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the electric plug connection and disconnect it from the direction indicator light.

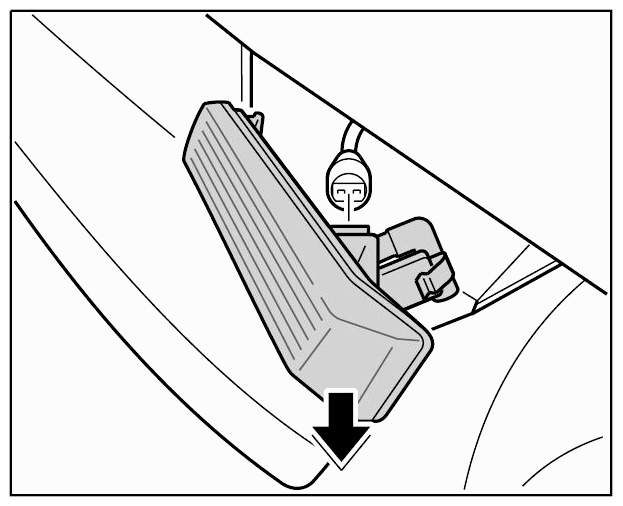

    Fig 2: Disconnecting Electric Plug Connection
    G09593499Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove the direction indicator light.
  4. Unscrew the bulb holder.
  5. Remove the bulb from the holder.

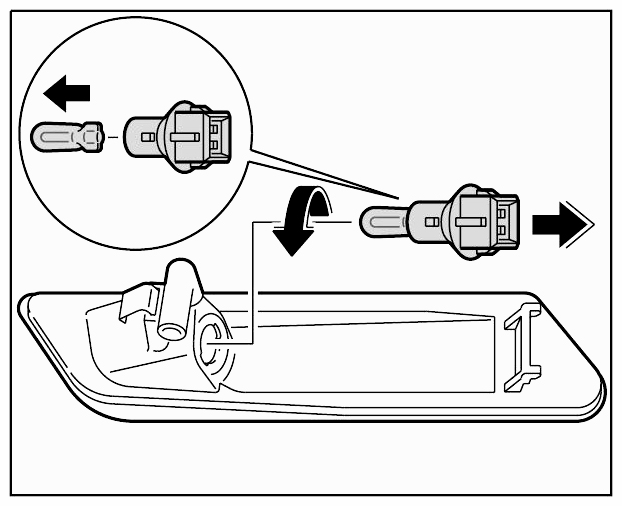

  6. Fig 3: Removing Bulb From Holder
    G09593500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
