Disassembling Steering Column Switch

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

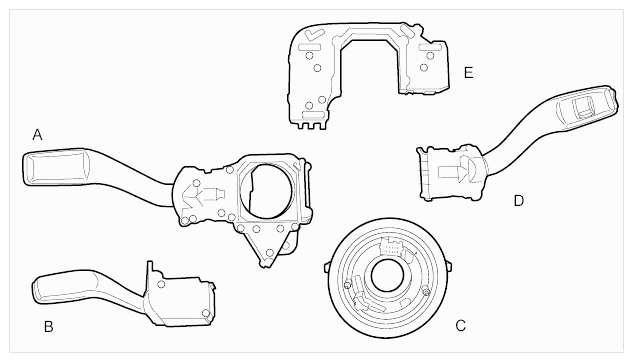

Fig 1: Diagram Of Steering Column Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-A- - Direction indicator switch
-B- - GRA switch
-C- - Contact unit for airbag
-D- - Switch for wiper and washer system
-E- - Electronic unit

Information

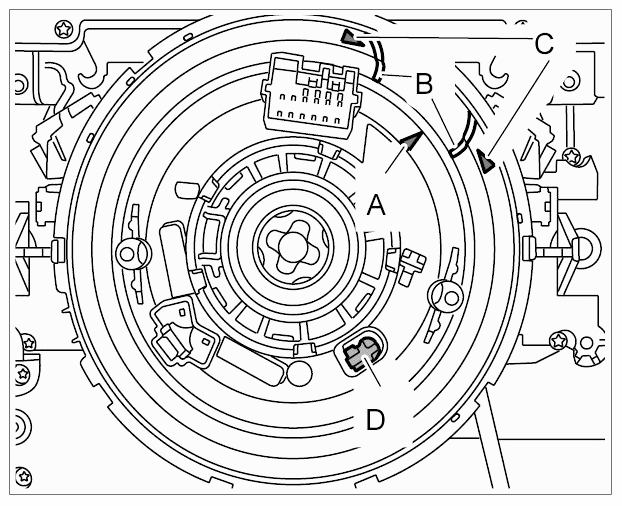

Ensure that arrow -A- on the rotor is positioned between the markings -B- of the arrows -C- on the airbag contact unit and that the locking element -D- is engaged.

Fig 2: Identifying Airbag Contact Unit Marking

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully lift up the three retaining tabs and remove airbag contact unit -C- .

Fig 3: Removing Airbag Contact Unit Locking Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

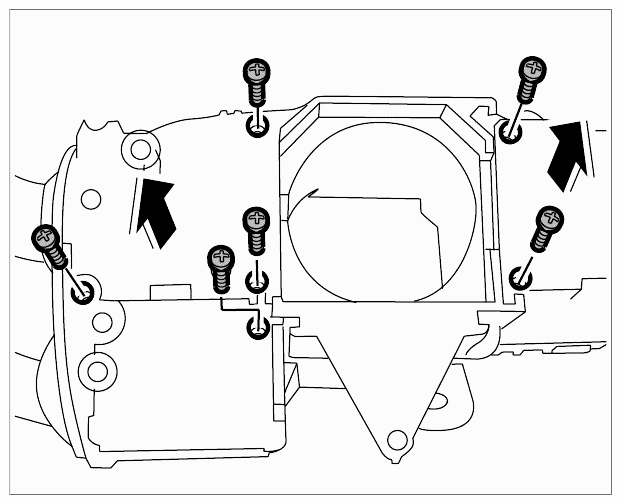

Unscrew the six fastening screws.

Fig 4: Removing Airbag Contact Unit Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

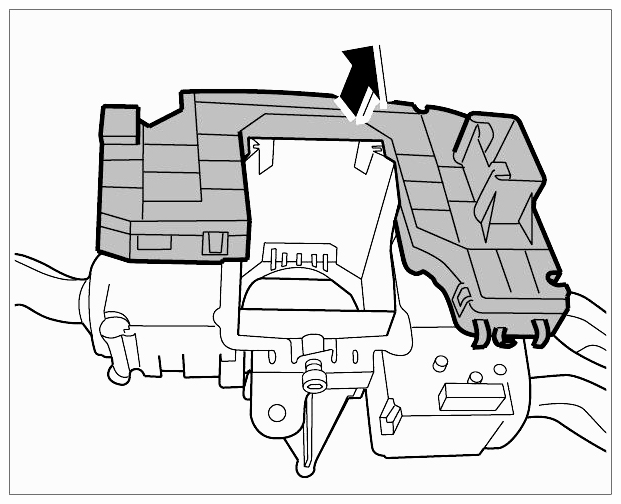

Turn the steering column switch round and remove the electronic unit -E- .

Fig 5: Removing Electronic Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

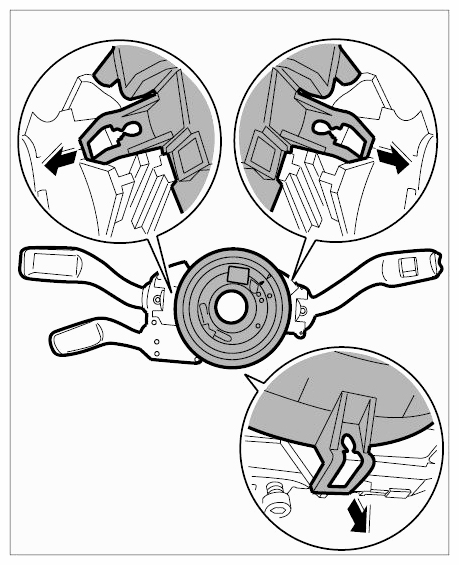

Pull the GRA switch -B- downward and disengage.

Fig 6: Removing GRA Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

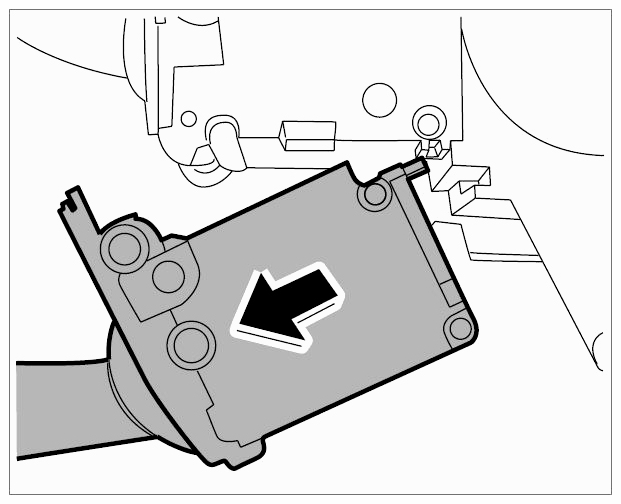

Pull switch for wiper and washer system -D- up and out of the mount.

Fig 7: Pulling Switch For Wiper And Washer System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
