Installing Steering-Column Switch

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Slide steering column switch onto steering column to the stop and secure with fastening screw. → Tightening torque: 6 Nm (4.5 ftlb.)

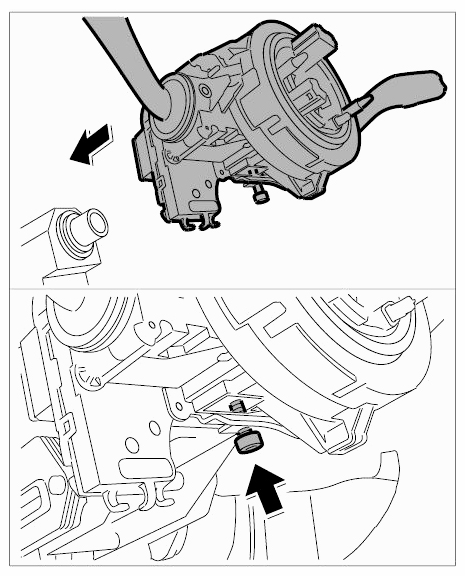

Fig 1: Installation Of Steering Column Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in connectors on steering column switch until they engage securely.

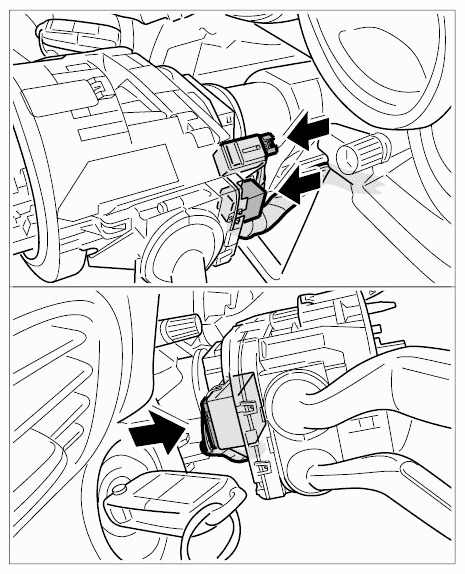

Fig 2: Connecting Steering Column Switch Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
