Installing Stop Light Switch

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

The brake light switch setting is firmly fixed and is not adjustable!
The brake light switch may be fitted only once in order to ensure that it fits tightly!

Before fitting the stop light switch, pull out the plunger (arrow) out of the stop light switch until the stop.

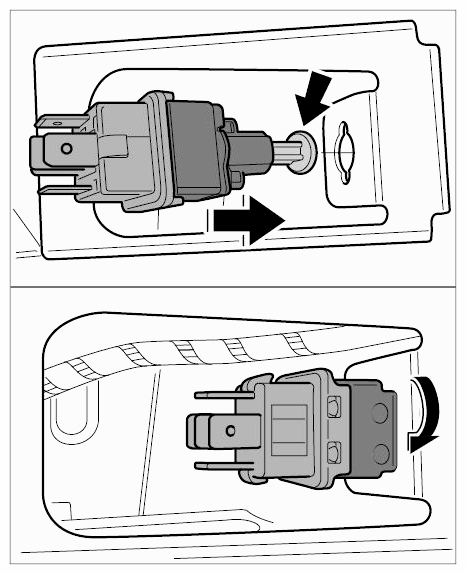

Fig 1: Installing Stop Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert stop light switch with the bayonet lock take-up bore, press in, and turn clockwise by 90°. This sets the tappet push rod to the exact length.
Position and insert the plug until it is felt to engage.

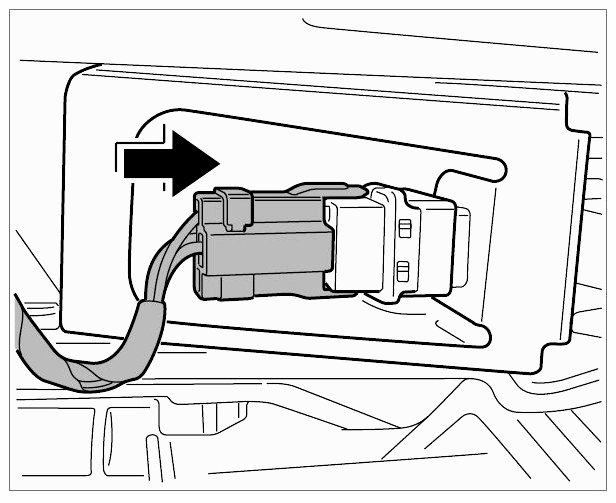

Fig 2: Connecting Stop Light Switch Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
