Installing Halogen Bulb

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect handling of bulbs

Risk of damage to bulbs and the bulb housing

→ Switch off ignition and remove ignition key.

→ Switch off the relevant loads when changing bulbs.

→ Only use bulbs listed in the bulb table.

→ Only install clean bulbs that are free of grease.

→ Always use a cloth or soft paper when working with bulbs.

→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.

→ In certain states, it is compulsory to carry spare light bulbs.

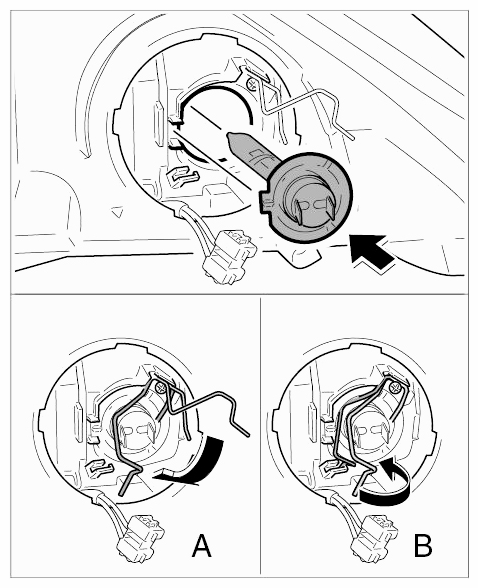

Fit new bulb into the headlight and clamp securely with the locking clip.

Fig 1: Installing Halogen Bulb
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in the electric plug until it clicks into place.
Fit the cover -1- (arrows) and turn it clockwise to engage it (bayonet lock).

Fig 2: Pressing Electric Plug

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
