Removing cap of main headlight

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew four fastening screws -1-  from the cap.

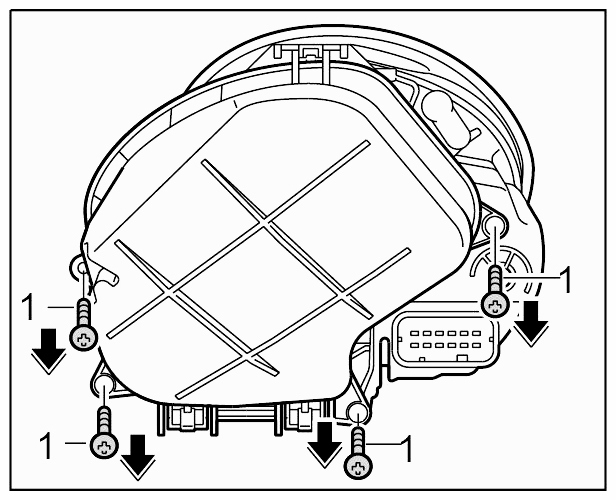

    Fig 1: Removing Main Headlight Cap Fastening Screws
    G09593413Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release cap once at the top and twice at the bottom -a-  and remove from the main headlight.

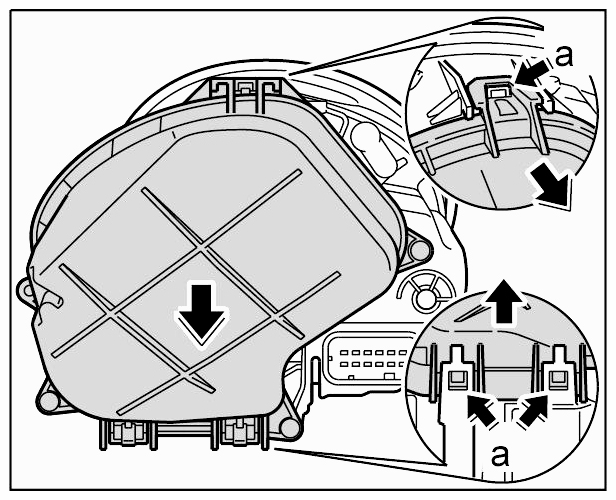

    Fig 2: Releasing Main Headlight Cap
    G09593414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
