Removing High Beam Halogen Bulb

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

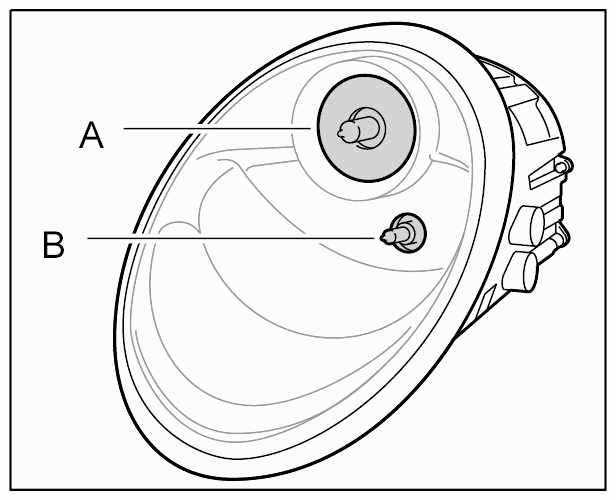

Fig 1: Identifying Halogen Bulb And High Beam Bulb
G09593418Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Halogen bulb
  2. High beam bulb
  1. Unscrew high beam bulb, bayonet lock counter-clockwise.

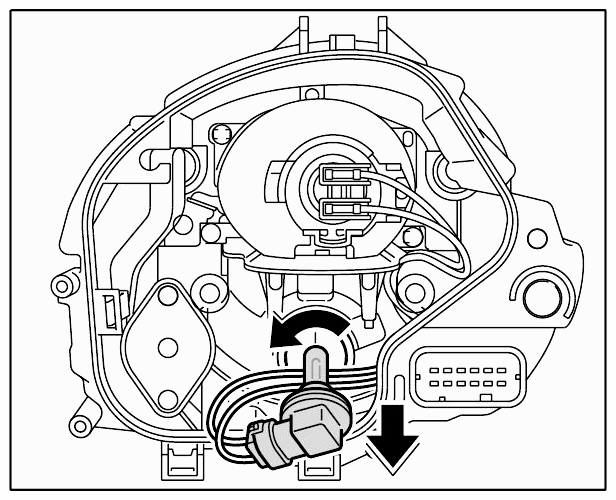

    Fig 2: Unscrewing Bayonet Lock
    G09593419Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip electric connector -a-  and unplug.

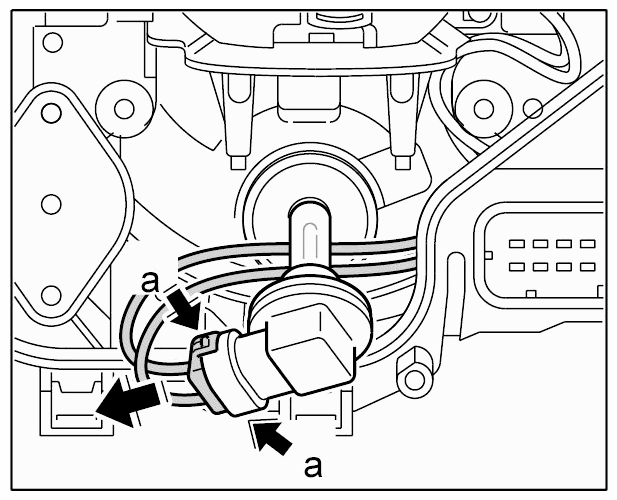

    Fig 3: Unplugging Electrical Connector
    G09593420Courtesy of PORSCHE CARS NORTH AMERICA, INC.
