Installing Main Headlight Cap

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

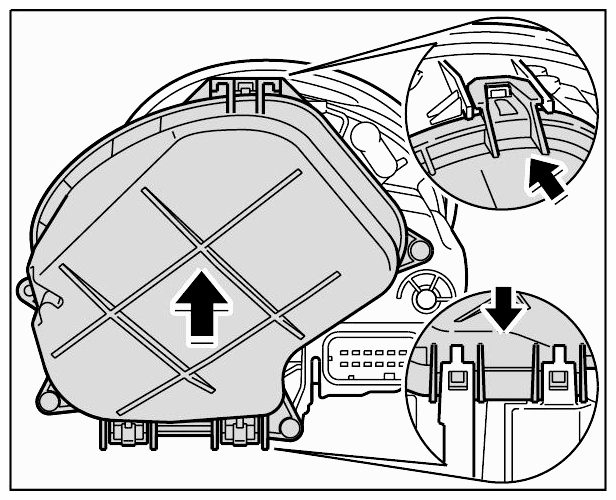

  1. Position cap on main headlight and press into place, making sure that the cap engages once at the top and twice at the bottom.
    Fig 1: Installing Main Headlight Cap
    G09593424Courtesy of PORSCHE CARS NORTH AMERICA, INC.

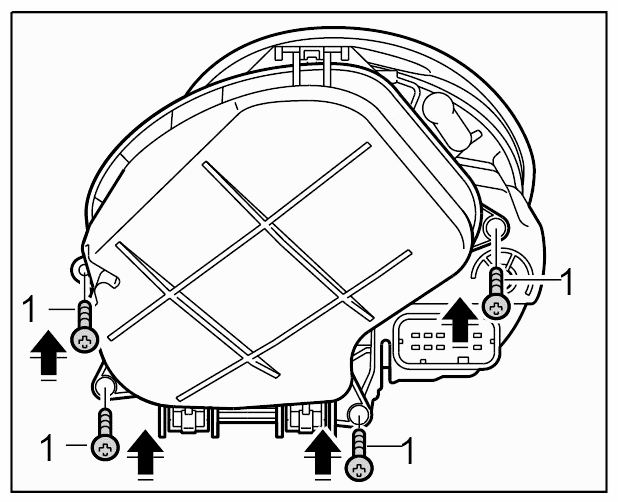

  2. Screw in four fastening screws -1-  for the cap.
    Fig 2: Screwing Main Headlight Cap Fastening Screws
    G09593425Courtesy of PORSCHE CARS NORTH AMERICA, INC.
