Installing High Beam Halogen Bulb

→ Switch off ignition and remove ignition key.

→ Switch off the relevant loads when changing bulbs.

→ Only use bulbs listed in the bulb table.

→ Only install clean bulbs that are free of grease.

→ Always use a cloth or soft paper when working with bulbs.

→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.

→ In certain states, it is compulsory to carry spare light bulbs.

→ Switch off ignition and remove ignition key.

→ Switch off the relevant loads when changing bulbs.

→ Only use bulbs listed in the bulb table.

→ Only install clean bulbs that are free of grease.

→ Always use a cloth or soft paper when working with bulbs.

→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.

→ In certain states, it is compulsory to carry spare light bulbs.

1. Push electric connector onto bulb until it clicks into place.

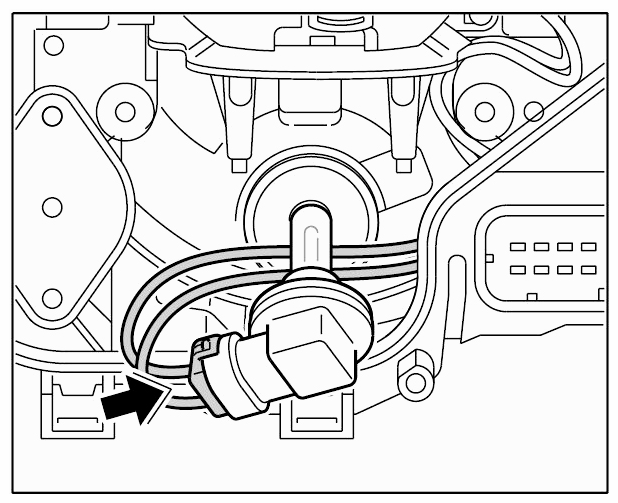

   Fig 1: Pushing Electric Connector Onto Bulb

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert high beam bulb into headlight and lock with bayonet lock.

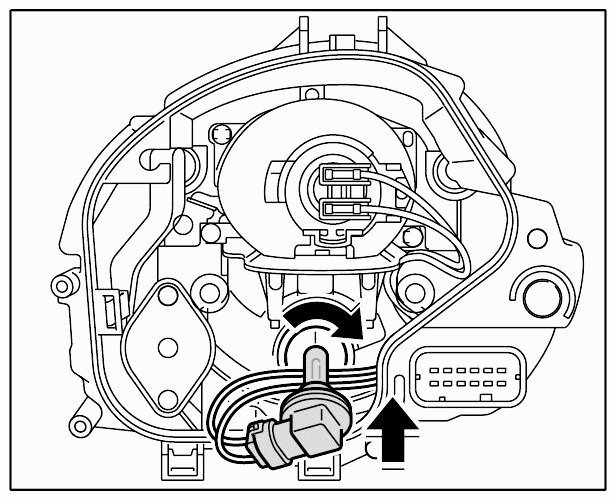

   Fig 2: Installing High Beam Bulb Into Headlight

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
