Removing Main Light Switch

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

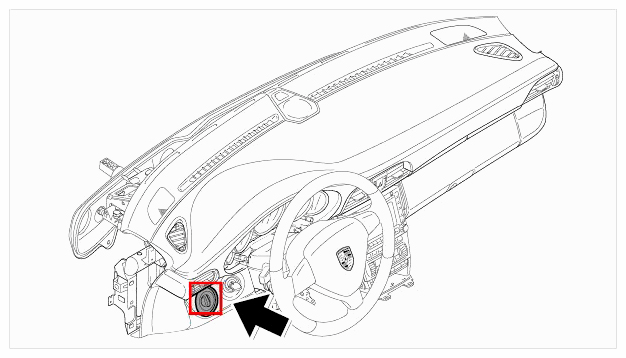

Fig 1: Identifying Main Light Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.

Press in rotary knob on the light switch (but not to the limit) and turn the switch to the right.
Pull the light switch out.

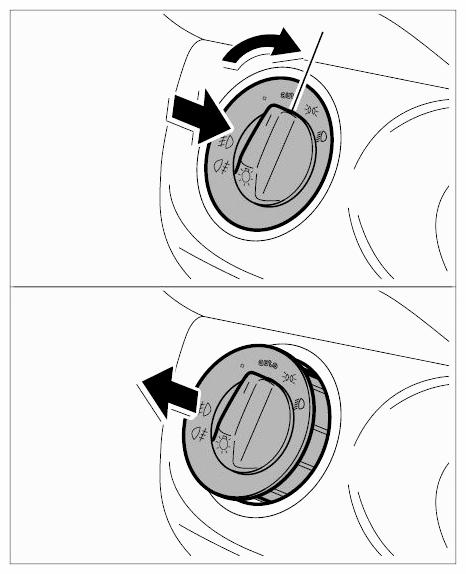

Fig 2: Removing Main Light Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release -A- and remove -B- electrical connector.

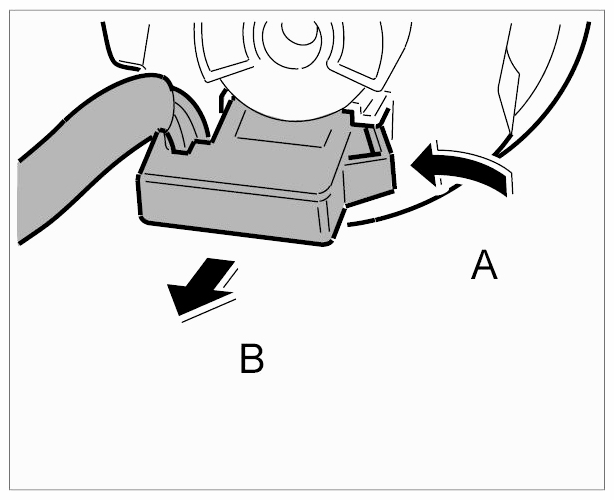

Fig 3: Releasing Electrical Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
