Installing Main Light Switch

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. -A-  Insert the light switch connector until it is felt to engage.
  2. -B-  Push in the light switch to its limit and turn the rotary knob anti-clockwise.

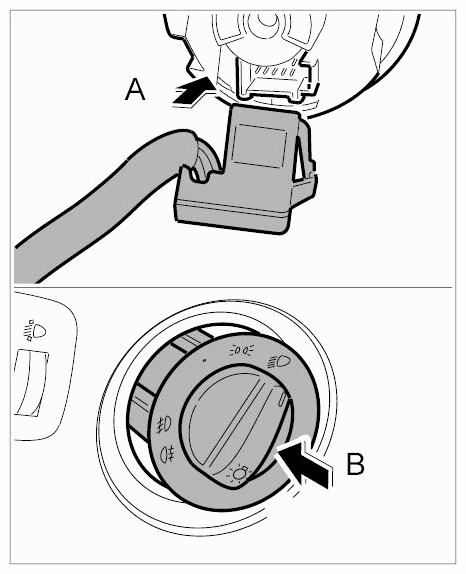

    3. Fig 1: Installing Main Light Switch
    G09593397Courtesy of PORSCHE CARS NORTH AMERICA, INC.
