Installing Rear Luggage Compartment Cover

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

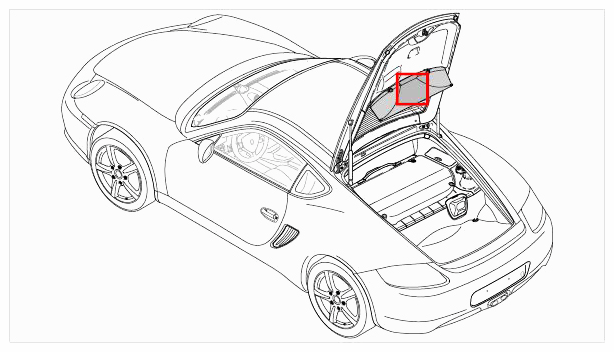

Fig 1: Identifying Installation Position Of Luggage Compartment Cover
G09591763Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position rear luggage compartment cover -2-  on the rear lid lining -3- -Arrow A-  , and lock the locking mechanism -1-  right and left in -direction of Arrow B-  .

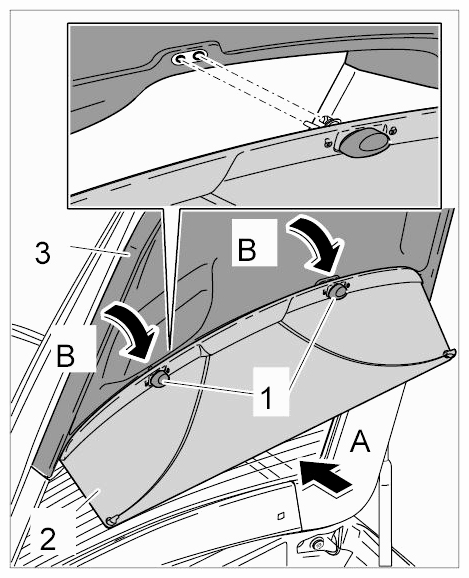

    Fig 2: Installing Rear Luggage Compartment Cover
    G09591764Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Close rear lid.
